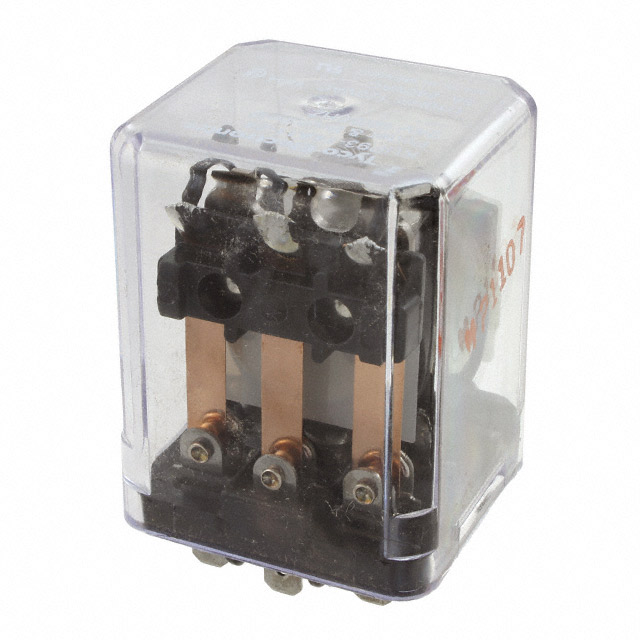

通用继电器 3PDT 10A 24VAC GEN PURPOSE RELAY
Electromechanical Relay 24VAC 72Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Product Highlights
KUP93 Series
Contact Arrangement = 3 Form C, 3PDT, 3 C/O
Contact Current Rating = 10 Amps.
Monostable Coil Magnetic System
Input Voltage = 24 VAC
得捷:
RELAY GEN PURPOSE 3PDT 10A 24V
贸泽:
通用继电器 3PDT 10A 24VAC GEN PURPOSE RELAY
艾睿:
Electromechanical Relay 24VAC 72Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Chip1Stop:
Electromechanical Relay 3PDT 10A 24VAC 72Ohm Socket
Verical:
Electromechanical Relay 24VAC 72Ohm 10A 3PDT 38.89mm 35.71mm 54.76mm Socket General Purpose Relay
Online Components:
Electromechanical Relay 24VAC 72Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Electro Sonic:
Power Relay
额定电压DC 28 V
额定电压AC 240 V
触点类型 3PDT
功耗 2.7 VA
触点额定电流 10 A
线圈电压 24 VAC
线圈电流 115 mA
线圈电压AC 24 V
线圈电阻 72 Ω
载流 10.0 A
额定电流Max 10 A
线圈功率 2.7 VA
工作温度Max 45 ℃
工作温度Min -45 ℃
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Plug In
引脚数 11
长度 38.9 mm
宽度 35.7 mm
高度 48.4 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
