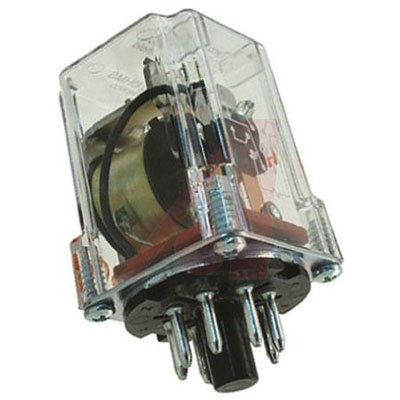

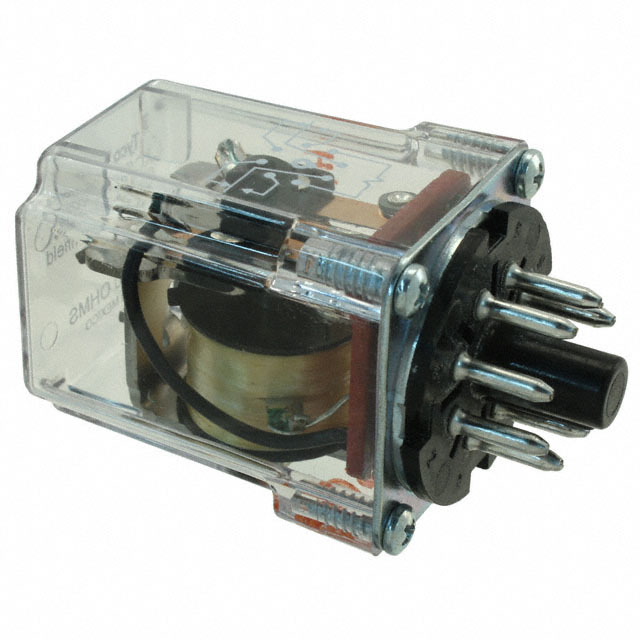

TE CONNECTIVITY / POTTER & BRUMFIELD KCP-11-10000 功率继电器
**KCP & KRP Series Relays**
Professional KCP & KRP series relays.
e络盟:
继电器, 信号, DPDT, 120VAC, 2A
艾睿:
Electromechanical Relay 50VDC 10KOhm 2A DPDT 35.71x35.71x50.8mm Socket Current Actuated Relay
Allied Electronics:
RELAY, MONOSTABLE MAGNETIC COIL SYSTEM, 2 A, 120 VAC, 2 FORM C, DPDT
Chip1Stop:
Electromechanical Relay DPDT 2A 50VDC 10KOhm Socket
Verical:
Electromechanical Relay 50VDC 10KOhm 2A DPDT 35.71mm 35.71mm 50.8mm Socket Current Actuated Relay
MASTER:
Power Relay 2A DPDT35.71x35.71x50.8mm Socket
Online Components:
Electromechanical Relay 50VDC 10KOhm 2A DPDT 35.71mm 35.71mm 50.8mm Socket Current Actuated Relay
ICbanQ:
General Purpose / Industrial Relays DPDT 2A 120VAC GEN PURPOSE RELAY
Electro Sonic:
Power Relay 2A DPDT35.71x35.71x50.8mm Socket
额定电压AC 120 V
额定电流 2 A
触点类型 DPDT
功耗 250 mW
触点额定电流 2 A
线圈电压 50 V
线圈电流 5 mA
线圈电阻 10 kΩ
载流 5.90 A
额定电流Max 2 A
线圈电压DC 50 V
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压AC Max 120 V
安装方式 Plug In
引脚数 8
封装 120
长度 35.71 mm
宽度 50.8 mm
高度 50.8 mm
封装 120
触点材质 Silver
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
