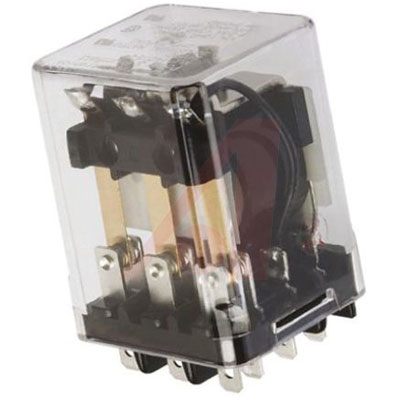

KUP-17D19-24 - TE Connectivity 非闭锁继电器 4 刀双掷 插入式, 24V dc KUP 10 A
通用 继电器 4PDT（4 Form C） 24VDC 线圈 可插
得捷:
RELAY GEN PURPOSE 4PDT 10A 24V
艾睿:
Electromechanical Relay 24VDC 320Ohm 10A 4PDT 38.89mm 35.71mm 57.89mm Socket Industrial Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; 4PDT; Cur-Rtg 10A; Ctrl-V 24DC; Vol-Rtg 120/28AC/DC; 12 Pin
Chip1Stop:
Electromechanical Relay 24VDC 320Ohm 10A 4PDT 38.89x35.71x57.89mm Socket Industrial Relay
Verical:
Electromechanical Relay 24VDC 320Ohm 10A 4PDT 38.89mm 35.71mm 57.89mm Socket Industrial Relay
MASTER:
Power Relay 24VDC 10A 4PDT38.9x35.7x50mm Socket
Electro Sonic:
Power Relay 24VDC 10A 4PDT38.9x35.7x50mm Socket
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
输入电压DC 24.0 V
触点类型 4PDT
功耗 1.20 W
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 75 mA
线圈功率DC 1.80 W
线圈电阻 320 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 24 V
线圈功率 1.8 W
工作温度Max 50 ℃
工作温度Min -45 ℃
额定电压 240 VAC
安装方式 Quick Connect, Plug In, Panel
引脚数 12
长度 38.89 mm
宽度 48.41 mm
高度 57.89 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 50℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
