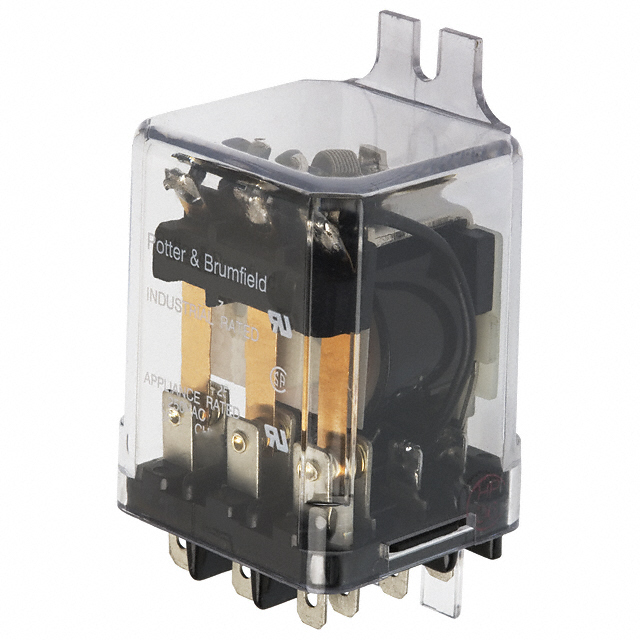

TE CONNECTIVITY / POTTER & BRUMFIELD KUP-17A55-24 功率继电器
通用 继电器 4PDT（4 Form C） 24VAC 线圈 底座安装
得捷:
RELAY GEN PURPOSE 4PDT 10A 24V
立创商城:
24VAC 10A 无锁存
e络盟:
继电器, 4PDT, 240VAC, 32VDC, 10A
艾睿:
Electromechanical Relay 24VAC 72Ohm 10A 4PDT73.7x38.89x55.55mm Bracket Industrial Relay
Chip1Stop:
Electromechanical Relay 4PDT 10A 24VAC 72Ohm Bracket Mount
Verical:
Electromechanical Relay 24VAC 72Ohm 10A 4PDT 73.7x38.89x55.55mm Bracket Industrial Relay
Newark:
Power Relay, 4PDT, 24 VAC, 10 A, KUP Series, Panel, Non Latching
MASTER:
Power Relay 24VAC 10A 4PDT48.4x38.9x35.7mm Bracket
Online Components:
Electromechanical Relay 24VAC 72Ohm 10A 4PDT73.7x38.89x55.55mm Bracket Industrial Relay
ICbanQ:
General Purpose / Industrial Relays 4P BRKT MT QC 24VAC
Electro Sonic:
Power Relay 24VAC 10A 4PDT48.4x38.9x35.7mm Bracket
额定电压DC 28 V
额定电压AC 240 V
触点类型 4PDT
功耗 2.70 W
触点额定电流 10 A
线圈电压 24 VAC
线圈电流 115 mA
线圈电压AC 24 V
线圈电阻 72 Ω
载流 10.0 A
额定电流Max 10 A
线圈功率 2.8 VA
工作温度Max 45 ℃
工作温度Min -45 ℃
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Panel
引脚数 14
封装 -
长度 38.9 mm
宽度 35.7 mm
高度 55.55 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
