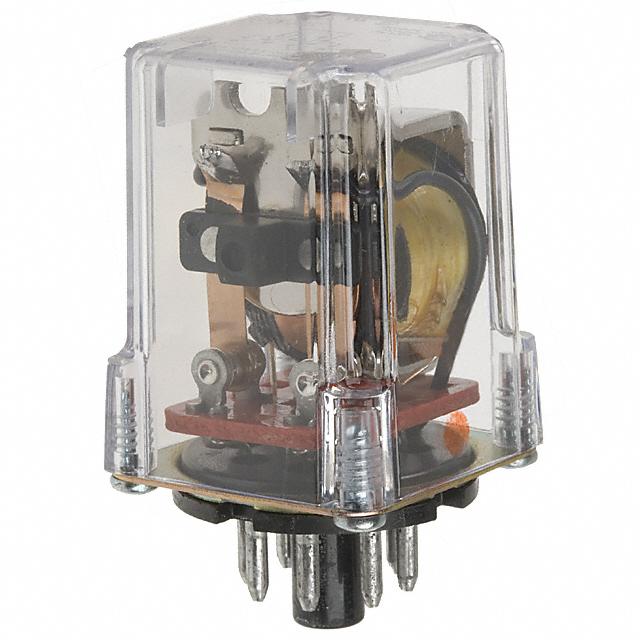

TE CONNECTIVITY / POTTER & BRUMFIELD KRP-14DG-24 功率继电器, 24VDC
通用 继电器 3PDT（3 Form C） 24VDC 线圈 可插
立创商城:
24VDC 10A 无锁存
得捷:
RELAY GEN PURPOSE 3PDT 10A 24V
e络盟:
继电器, 3PDT, 240VAC, 10A
艾睿:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT35.71x35.71mm Socket General Purpose Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; 3PDT; Cur-Rtg 10A; Ctrl-V 24DC; Vol-Rtg 120/28AC/DC; Plug-In
Chip1Stop:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT 35.71x35.71mm Socket General Purpose Relay
Verical:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT 35.71x35.71mm Socket General Purpose Relay
MASTER:
Power Relay 24VDC 10A 3PDT35.7x35.7x50.8mm Socket
Online Components:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT35.71x35.71mm Socket General Purpose Relay
ICbanQ:
General Purpose / Industrial Relays 3PDT 10A 24VDC GEN PURPOSE RELAY
Electro Sonic:
Power Relay 24VDC 10A 3PDT35.7x35.7x50.8mm Socket
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
额定功率 1.20 W
输入电压DC 24.0 V
触点类型 3PDT
功耗 1.2 W
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 51 mA
线圈功率DC 1.20 W
线圈电阻 472 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 24 V
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压 240 VAC
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Plug In
引脚数 11
封装 -
长度 35.71 mm
宽度 35.71 mm
高度 35.71 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KRP-14DG-24 TE Connectivity 泰科 | 当前型号 | 当前型号 |
KRPA-14DG-24 泰科 | 完全替代 | KRP-14DG-24和KRPA-14DG-24的区别 |
MKS3PI-5 DC24 欧姆龙 | 功能相似 | KRP-14DG-24和MKS3PI-5 DC24的区别 |
RR3PA-UDC24V IDEC | 功能相似 | KRP-14DG-24和RR3PA-UDC24V的区别 |
