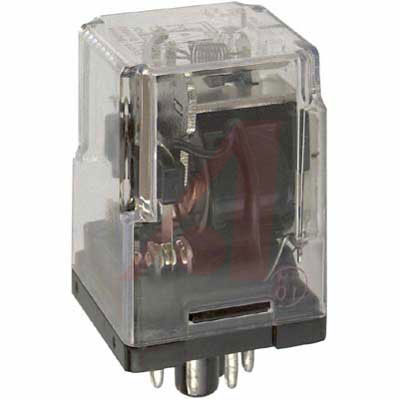

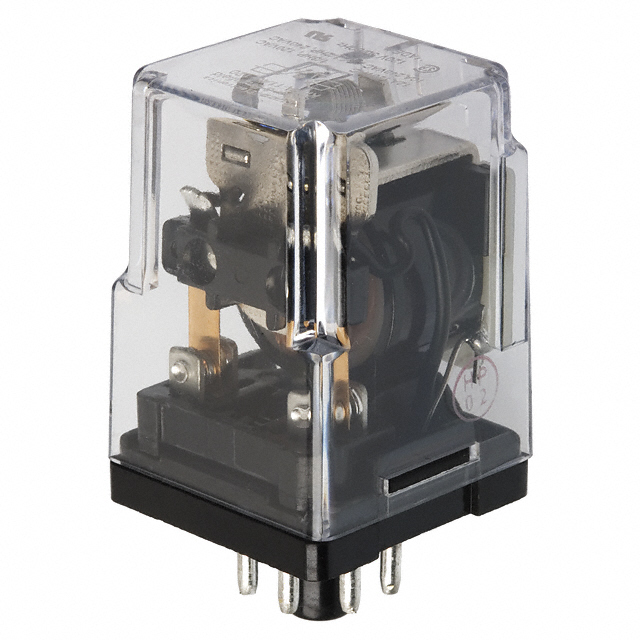

TE CONNECTIVITY / POTTER & BRUMFIELD KRPA-11AN-240 功率继电器, 240VAC
2 Form C, DPDT, 2 C/O; 10 AMP Relay
e络盟:
继电器, DPDT, 240VAC, 10A
艾睿:
Power Relay 240VAC 10A DPDT35.71x35.7x50.8mm Socket
Allied Electronics:
Relay; E-Mech; Gen Purp; DPDT; Cur-Rtg 10A; Ctrl-V 240AC; Vol-Rtg 120/28AC/DC; Plug-In
Jameco:
Electromechanical Relay 240VAC 9.11KOhm 10A DPDT 35.71mm 35.71mm 50.8mm Socket General Purpose Relay
Chip1Stop:
Electromechanical Relay 240VAC 9.11KOhm 10A DPDT 35.71mm 35.71mm 50.8mm Socket General Purpose Relay
Verical:
Electromechanical Relay 240VAC 9.11KOhm 10A DPDT 35.71mm 35.71mm 50.8mm Socket General Purpose Relay
MASTER:
Power Relay 240VAC 10A DPDT35.7x35.7x50.8mm Socket
Online Components:
Electromechanical Relay 240VAC 9.11KOhm 10A DPDT35.71x35.71x50.8mm Socket General Purpose Relay
Electro Sonic:
Power Relay 240VAC 10A DPDT35.7x35.7x50.8mm Socket
额定电压DC 240 V
额定电压AC 240 V
额定电流 10 A
额定功率 2.00 W
触点类型 DPDT
功耗 2.00 W
触点额定电流 10 A
线圈电压 240 VAC
线圈电流 8.75 mA
线圈电压AC 240 V
线圈电阻 9.11 kΩ
载流 10.0 A
额定电流Max 10 A
工作温度Max 55 ℃
工作温度Min -45 ℃
额定电压 240 VAC
安装方式 Plug In
引脚数 8
封装 120
长度 48.8 mm
宽度 37.3 mm
高度 50.8 mm
封装 120
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 55℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536490075
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KRPA-11AN-240 TE Connectivity 泰科 | 当前型号 | 当前型号 |
MKS2PI DC110 欧姆龙 | 功能相似 | KRPA-11AN-240和MKS2PI DC110的区别 |
DEL-MKS2PI DC110 欧姆龙 | 功能相似 | KRPA-11AN-240和DEL-MKS2PI DC110的区别 |
