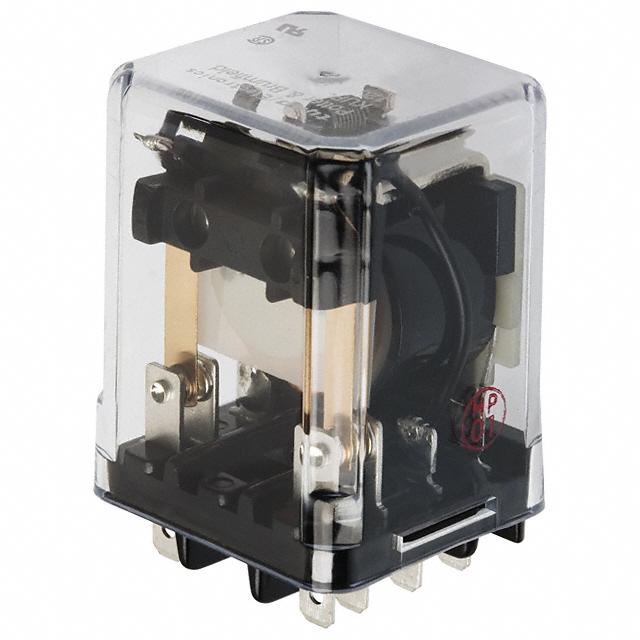

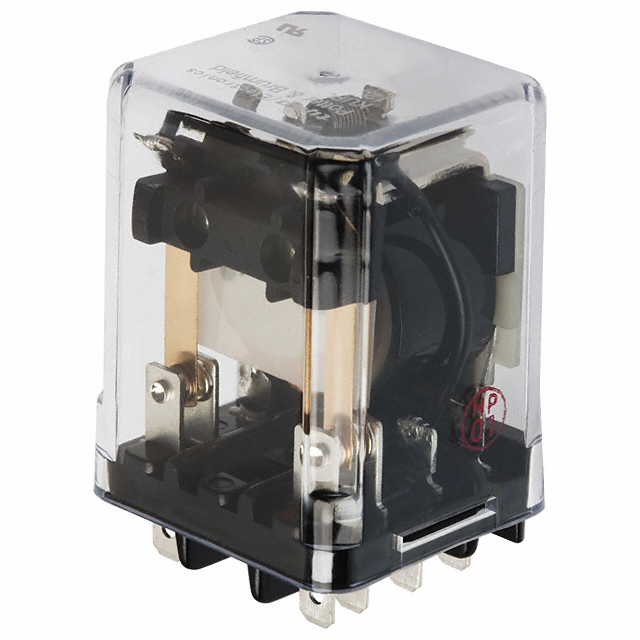

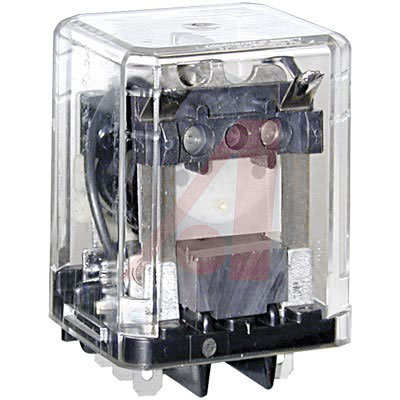

TE CONNECTIVITY / POTTER & BRUMFIELD KUEP-11D15-24 功率继电器, 24VDC
通用 继电器 DPDT（2 Form C） 24VDC 线圈 可插
欧时:
Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A
得捷:
RELAY GEN PURPOSE DPDT 10A 24V
e络盟:
继电器, DPDT, 240VAC, 32VDC, 10A
艾睿:
Electromechanical Relay 24VDC 320Ohm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; DPDT; Cur-Rtg 10A; Ctrl-V 24DC; Vol-Rtg 240/28AC/DC; 9 Pin
Chip1Stop:
Electromechanical Relay 24VDC 320Ohm 10A DPDT38.89x35.71x55.55mm Plain Case Industrial Relay
Verical:
Electromechanical Relay 24VDC 320Ohm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Power Relay 24VDC 10A DPDT38.9x35.7x48.4mm Socket
Online Components:
Electromechanical Relay 24VDC 320Ohm 10A DPDT38.89x35.71x55.55mm Plain Case Industrial Relay
Electro Sonic:
Power Relay 24VDC 10A DPDT38.9x35.7x48.4mm Socket
Win Source:
RELAY GEN PURPOSE DPDT 10A 24V
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
额定功率 1.80 W
输入电压DC 24.0 V
触点类型 DPDT
功耗 1.20 W
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 75 mA
线圈功率DC 1.80 W
线圈电阻 320 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 24 V
线圈功率 1.8 W
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压 300 VAC
安装方式 Plug In
引脚数 9
长度 38.9 mm
宽度 35.7 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
