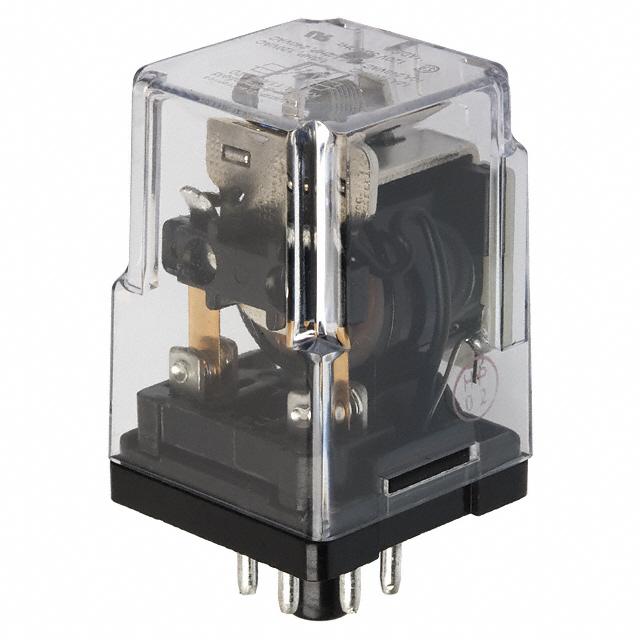

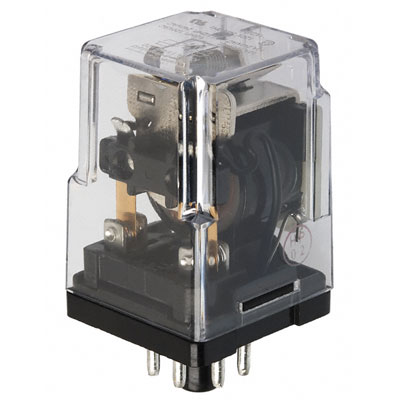

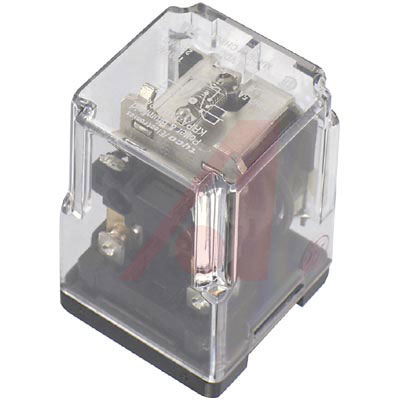

KRPA-11DY-24

TE CONNECTIVITY / POTTER & BRUMFIELD  KRPA-11DY-24  功率继电器, 24VDC

24 VDC Rated Voltage, 5 A Rated Current, General Purpose Relay

Ruggedly constructed relay offered with silver contacts, code "Y", rated 5 amps; and silver-cadmium oxide contacts, code "G" rated 10 amps. Contact arrangements are available up through 3 form 3PDT. Expected life exceeds 100,000 operations at rated load. Mechanical life is 10 million operations, minimum. Enclosed in a clear dust cover. UL recognized under file E22575. Low cost version of the KRP relay.KRPA-N Series has an indicator lamp wired in parallel with its coil, making this model ideal for voltage or current monitoring applications. Silver-cadmium oxide contacts are rated 10 amps. KRPA-N specifications are identical to those of the KRPA-G series.

* Multi-Contact Arrangement

* Octal Plug Termination

* Clear Dust Cover

* Hold-Down Spring for KRPA and KRPA-N Will Accommodate Machine Screws or Rivets; for Use with Flush Mount Chassis Sockets
