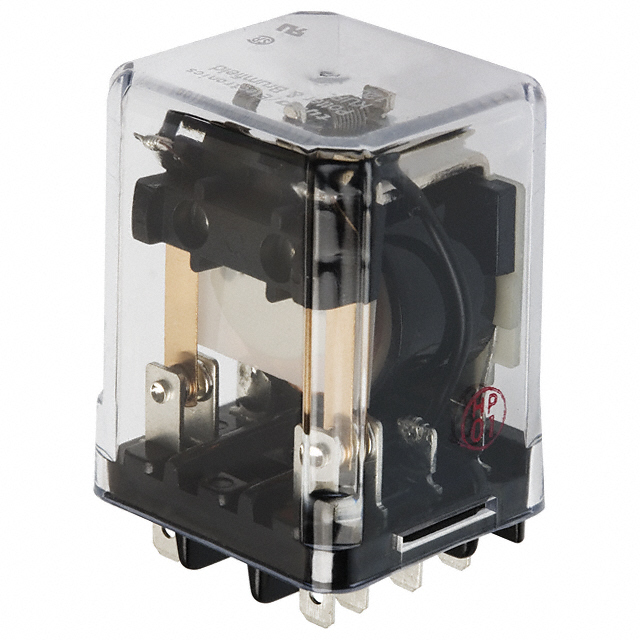

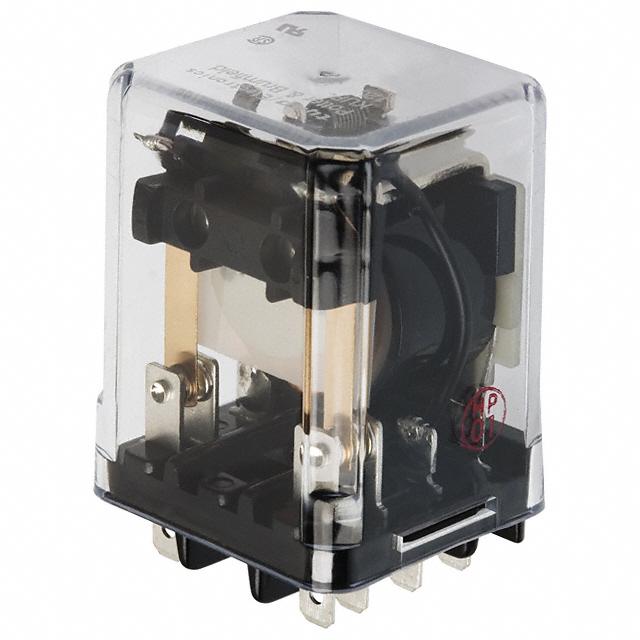

TE CONNECTIVITY / POTTER & BRUMFIELD KUEP-11D15-12 功率继电器
通用 继电器 DPDT（2 Form C） 12VDC 线圈 可插
立创商城:
12VDC 10A 无锁存
得捷:
RELAY GEN PURPOSE DPDT 10A 12V
贸泽:
通用继电器 2 Form C DPDT 2 C/O
e络盟:
继电器, DPDT, 240VAC, 32VDC, 10A
艾睿:
Electromechanical Relay 12VDC 80Ohm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; DPDT; Cur-Rtg 10A; Ctrl-V 12DC; Vol-Rtg 240/28AC/DC; 9 Pin
安富利:
Electromechanical Relay DPDT 10A 12VDC 80Ohm Plain Case
Chip1Stop:
Electromechanical Relay DPDT 10A 12VDC 80Ohm Plain Case
Verical:
Electromechanical Relay 12VDC 80Ohm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Power Relay 12VDC 10A DPDT38.9x35.7x48.4mm Socket
Online Components:
Electromechanical Relay 12VDC 80Ohm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Electro Sonic:
Power Relay 12VDC 10A DPDT38.9x35.7x48.4mm Socket
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
额定功率 1.80 W
输入电压DC 12.0 V
触点类型 DPDT
输入电流 10.0 A
功耗 1.8 W
触点额定电流 10 A
线圈电压 12 VDC
线圈电流 150 mA
线圈功率DC 1.80 W
线圈电阻 80 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 12 V
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压 300 VAC
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Quick Connect, DIN Rail
引脚数 8
封装 -
长度 38.9 mm
宽度 35.7 mm
高度 48.4 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
