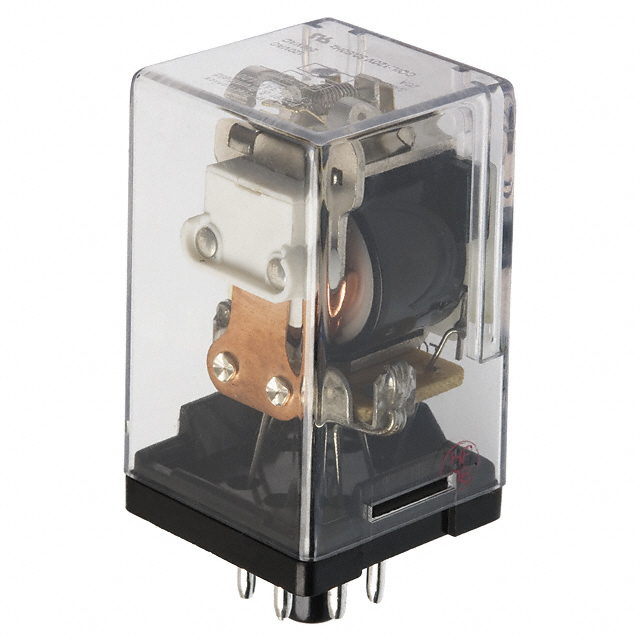

TE CONNECTIVITY / POTTER & BRUMFIELD KRP-3DH-12 继电器, SPST-常开, 12VDC, 20A, PCB
通用 继电器 SPST-NO（DM）（1 Form X） 12VDC 线圈 可插
得捷:
RELAY GEN PURPOSE SPST 20A 12V
立创商城:
12VDC 20A 无锁存
艾睿:
Power Relay
Chip1Stop:
Electromechanical Relay SPST-NO-DM 20A 12VDC 120Ohm Socket
Verical:
Electromechanical Relay 12VDC 120Ohm 20A SPST-NO-DM 38.89x35.71x57.94mm Socket General Purpose Relay
MASTER:
Electromechanical Relay 12VDC 120Ohm 20A SPST-NO-DM38.89x35.71x57.94mm Socket General Purpose Relay
Online Components:
Electromechanical Relay 12VDC 120Ohm 20A SPST-NO-DM38.89x35.71x57.94mm Socket General Purpose Relay
Electro Sonic:
Power Relay 12VDC 20A SPST-NO-DM35.7x35.7x50.8mm Socket
额定电压AC 120 V
输入电压DC 12.0 V
触点类型 SPST-NO
触点额定电流 20 A
线圈电压 12 VDC
线圈电流 100 mA
线圈功率DC 1.20 W
线圈电阻 120 Ω
载流 20.0 A
额定电流Max 20 A
线圈电压DC 12 V
线圈功率 1.2 W
额定电压AC Max 120 V
安装方式 Plug In
引脚数 8
封装 -
长度 38.89 mm
宽度 35.71 mm
高度 57.94 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
