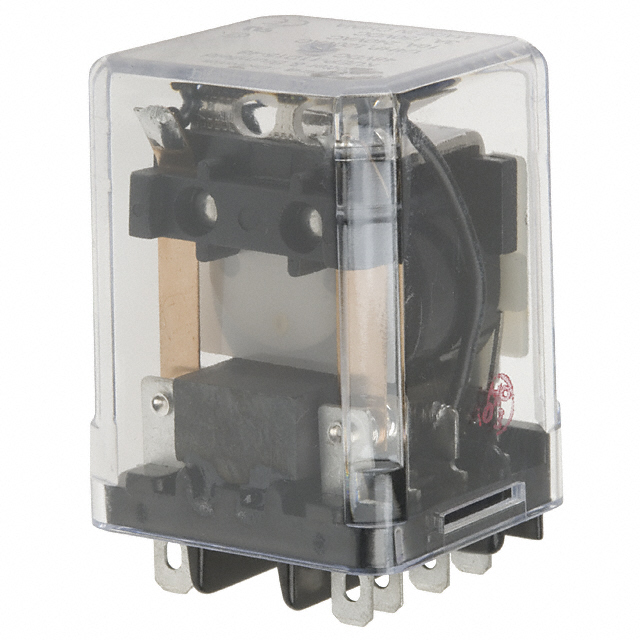

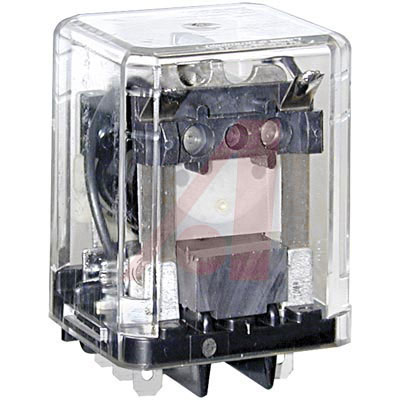

TE CONNECTIVITY / POTTER & BRUMFIELD KUEP-11D15-48 功率继电器, 48VDC
* 1 form X, 2 form A and 2 form C contact arrangements
* 10 amp current rating
* Magnetic blow-out
* Various mounting options
* Indicator lamp available
e络盟:
继电器, DPDT, 240VAC, 32VDC, 10A
艾睿:
Power Relay 48VDC 10A DPDT38.9x35.7x48.4mm Socket
Allied Electronics:
DPDT-CO Socket Mount Non-Latching RelayQuick Connect, 10 A, 48V dc
Chip1Stop:
Electromechanical Relay DPDT 10A 48VDC 1.25KOhm Plain Case
Verical:
Electromechanical Relay 48VDC 1.25KOhm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Power Relay 48VDC 10A DPDT38.9x35.7x48.4mm Socket
Online Components:
Electromechanical Relay 48VDC 1.25KOhm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Electro Sonic:
Power Relay 48VDC 10A DPDT38.9x35.7x48.4mm Socket
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
输入电压DC 48.0 V
触点类型 DPDT
触点额定电流 10 A
线圈电压 48 VDC
线圈电流 38.4 mA
线圈功率DC 1.80 W
线圈电阻 1.25 kΩ
载流 10.0 A
额定电流Max 10 A
线圈电压DC 48 V
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Quick Connect, Solder
引脚数 8
长度 38.9 mm
宽度 35.7 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
