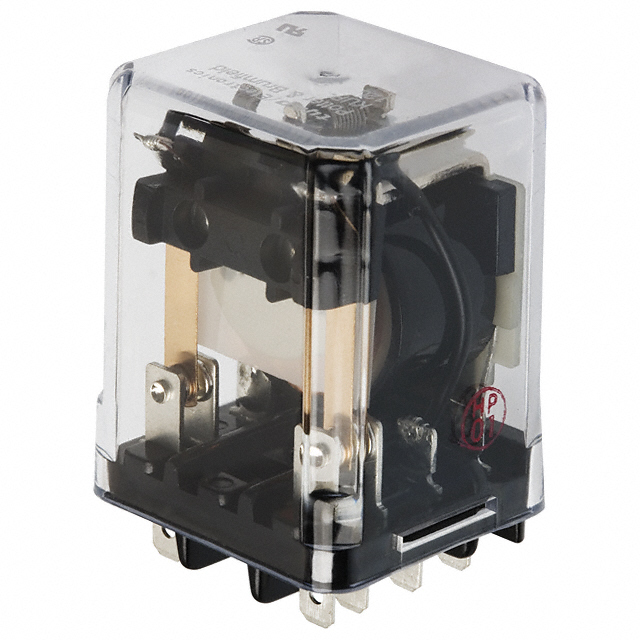

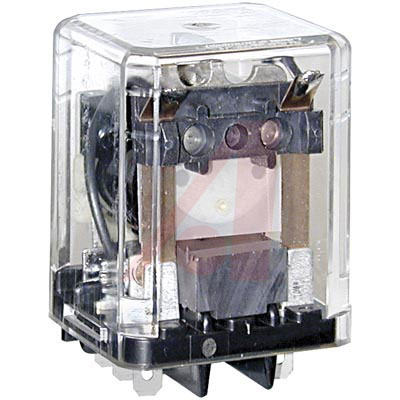

TE CONNECTIVITY / POTTER & BRUMFIELD KUEP-11A15-120 功率继电器, 120VAC
* 1 form X, 2 form A and 2 form C contact arrangements
* 10 amp current rating
* Magnetic blow-out
* Various mounting options
* Indicator lamp available
贸泽:
General Purpose Relays 10 AMP120VAC DPDT
e络盟:
继电器, DPDT, 240VAC, 32VDC, 10A
艾睿:
Electromechanical Relay 120VAC 1.7KOhm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; DPDT; Cur-Rtg 10A; Ctrl-V 120AC; Vol-Rtg 240/28AC/DC; 9 Pin
Chip1Stop:
Electromechanical Relay DPDT 10A 120VAC 1.7KOhm Plain Case
Verical:
Electromechanical Relay 120VAC 1.7KOhm 10A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Power Relay 120VAC 10A DPDT38.9x35.7x48.4mm Socket
Online Components:
Electromechanical Relay 120VAC 1.7KOhm 10A DPDT38.89x35.71x55.55mm Plain Case Industrial Relay
Electro Sonic:
Power Relay 120VAC 10A DPDT38.9x35.7x48.4mm Socket
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
功耗 2.9 VA
触点额定电流 10 A
线圈电压 120 VAC
线圈电流 24 mA
线圈电压AC 120 V
线圈电阻 1.7 kΩ
额定电流Max 10 A
开关电流Max 10 A
工作温度Max 45 ℃
工作温度Min -45 ℃
额定电压 300 VAC
额定电压DC Max 28 V
额定电压AC Max 240 V
引脚数 8
长度 38.9 mm
宽度 35.7 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
