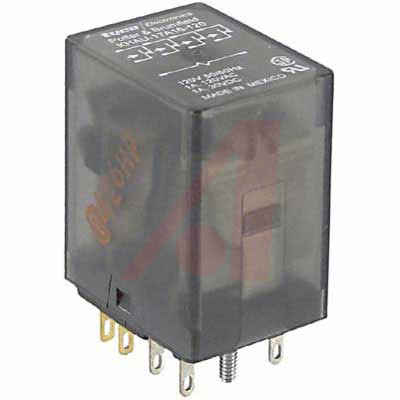

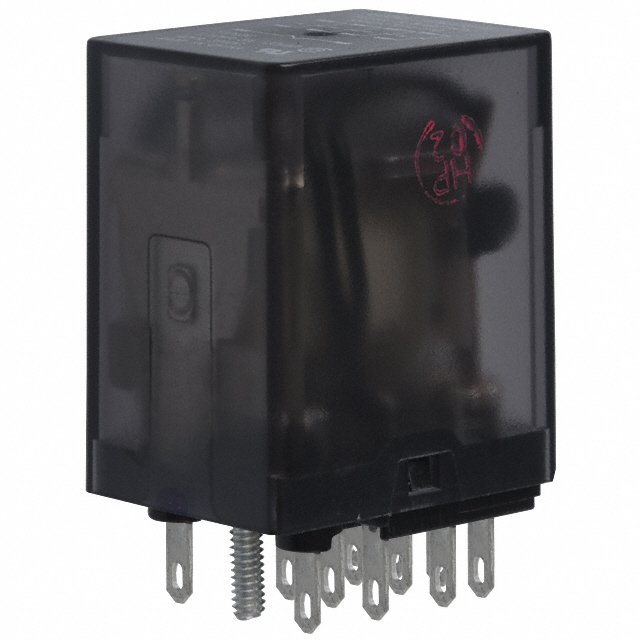

Electromechanical Relay 120VAC 3.9KΩ 5A 4PDT 21.82mm 28.17mm Socket General Purpose Relay
5 A Rated Current, 120 VAC Input Voltage, General Purpose Relay
* UL Recognized, CSA Certified
General purpose relay with 4PDT contact form
艾睿:
Power Relay
Allied Electronics:
Relay; 5 A; 120 VAC; 120 VAC; 4 Form C; 4PDT; 4 C⁄ O; ; 3900 Ohms; ; Socket
安富利:
Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket
Chip1Stop:
Electromechanical Relay 120VAC 3.9KOhm 5A 4PDT21.82x28.17mm Socket General Purpose Relay
Verical:
Electromechanical Relay 120VAC 3.9KOhm 5A 4PDT 21.82mm 28.17mm Socket General Purpose Relay
MASTER:
Power Relay 120VAC 5A 4PDT28.2x21.8x32.5mm Socket
Electro Sonic:
Power Relay 120VAC 5A 4PDT28.2x21.8x32.5mm Socket
Win Source:
RELAY GEN PURPOSE 4PDT 5A 120V / General Purpose Relay 4PDT 4 Form C 120VAC Coil Socketable
额定电压DC 28 V
额定电压AC 120 V
额定电流 5 A
触点额定电流 5 A
线圈电压 120 VAC
线圈电流 11 mA
线圈电压AC 120 V
线圈电阻 3.9 kΩ
额定电流Max 5 A
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压 240 VAC
引脚数 14
长度 28.17 mm
宽度 32.54 mm
高度 21.82 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KHAU-17A12-120 TE Connectivity 泰科 | 当前型号 | 当前型号 |
PT570615 泰科 | 类似代替 | KHAU-17A12-120和PT570615的区别 |
HC4-H-AC115V 松下 | 功能相似 | KHAU-17A12-120和HC4-H-AC115V的区别 |
R12-17A3-120 NTE Electronics | 功能相似 | KHAU-17A12-120和R12-17A3-120的区别 |
