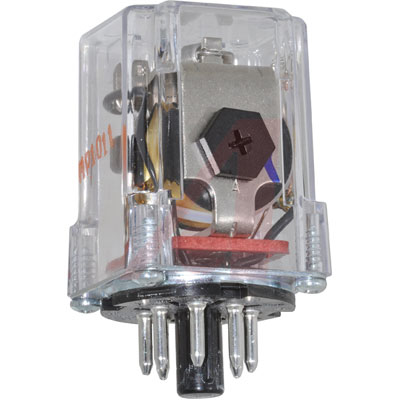

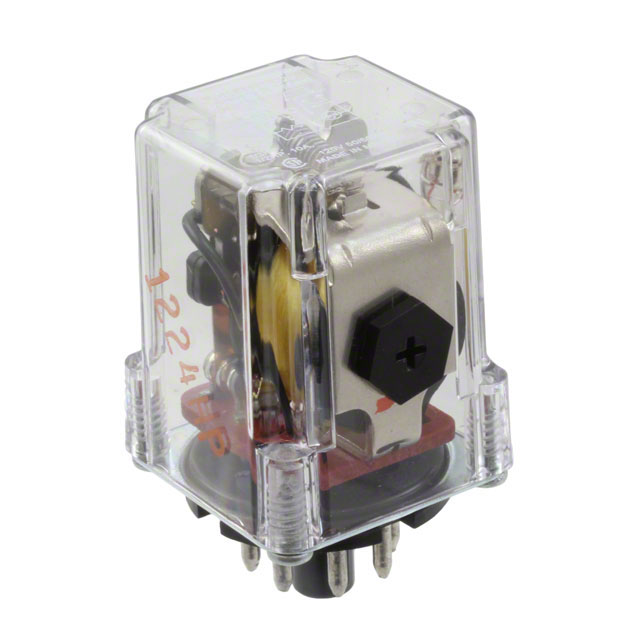

TE CONNECTIVITY / POTTER & BRUMFIELD KRP-11AN-120 功率继电器, DPDT, 120VAC, 10A, 插入式
**KRP Series Relay**
KRP Series relay from are general purpose with industry standard octal-type 8 pin termination
贸泽:
通用继电器 RELAY GP DPDT 10A 120VAC
艾睿:
Electromechanical Relay 120VAC 2.25KOhm 10A DPDT35.71x35.71mm Socket General Purpose Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; DPDT; Cur-Rtg 10A; Ctrl-V 120AC; Vol-Rtg 120/28AC/DC; Plug-In
Chip1Stop:
Electromechanical Relay 120VAC 2.25KOhm 10A DPDT 35.71x35.71mm Socket General Purpose Relay
Verical:
Electromechanical Relay 120VAC 2.25KOhm 10A DPDT 35.71x35.71mm Socket General Purpose Relay
MASTER:
Electromechanical Relay 120VAC 2.25KOhm 10A DPDT35.71x35.71mm Socket General Purpose Relay
Online Components:
Electromechanical Relay 120VAC 2.25KOhm 10A DPDT35.71x35.71mm Socket General Purpose Relay
ICbanQ:
General Purpose / Industrial Relays RELAY GP DPDT 10A 120VAC
Electro Sonic:
Power Relay 120VAC 10A DPDT38.89x36.5x57.94mm Socket
额定电压DC 28 V
额定电压AC 240 V
额定电流 10 A
触点类型 DPDT
功耗 2 VA
触点额定电流 10 A
线圈电压 120 VAC
线圈电流 17.5 mA
线圈电压AC 120 V
线圈电阻 2.25 kΩ
载流 5.00 A
额定电流Max 10 A
工作温度Max 55 ℃
工作温度Min -45 ℃
额定电压 240 VAC
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Plug In
引脚数 8
长度 48.8 mm
宽度 37.3 mm
高度 34.9 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536490075
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KRP-11AN-120 TE Connectivity 泰科 | 当前型号 | 当前型号 |
KRPA-11AG-120 泰科 | 完全替代 | KRP-11AN-120和KRPA-11AG-120的区别 |
KRPA-11AN-120 泰科 | 类似代替 | KRP-11AN-120和KRPA-11AN-120的区别 |
KRPA-11AY-120 泰科 | 类似代替 | KRP-11AN-120和KRPA-11AY-120的区别 |
