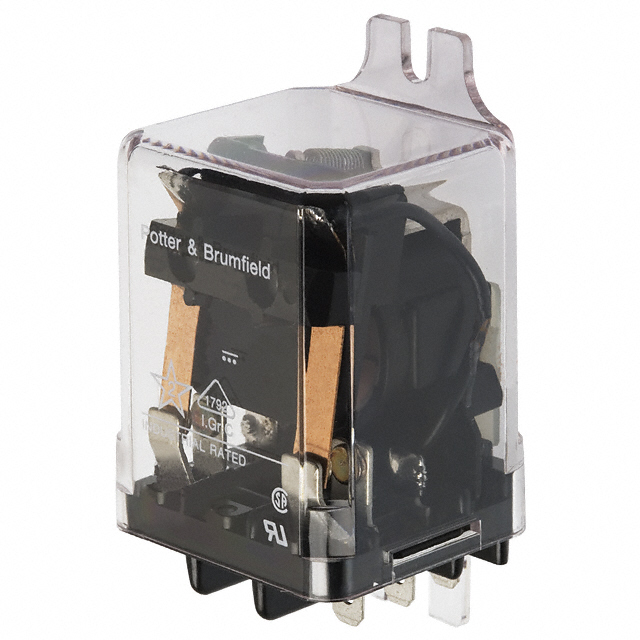

TE CONNECTIVITY / POTTER & BRUMFIELD KUGP-7D55-24 功率继电器
Electromechanical Relay 24VDC 472Ohm 10A DPST-NO73.7x38.89x55.55mm Bracket Industrial Relay
Product Highlights
Relay Type = General Purpose
Relay Style = General
KUGP Series
Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
Contact Current Rating = 10 A
立创商城:
24VDC 10A 无锁存
得捷:
RELAY GEN PURPOSE DPST 10A 24V
e络盟:
功率继电器
艾睿:
Electromechanical Relay 24VDC 472Ohm 10A DPST-NO 73.7mm 38.89mm 55.55mm Bracket Industrial Relay
Chip1Stop:
Electromechanical Relay DPST-NO 10A 24VDC 472Ohm Bracket Mount
Verical:
Electromechanical Relay 24VDC 472Ohm 10A DPST-NO 73.7mm 38.89mm 55.55mm Bracket Industrial Relay
MASTER:
Panel Plug-in Power Relay
Online Components:
Electromechanical Relay 24VDC 472Ohm 10A DPST-NO73.7x38.89x55.55mm Bracket Industrial Relay
Electro Sonic:
Panel Plug-in Power Relay
额定电压DC 28 V
额定电压AC 240 V
输入电压DC 24.0 V
触点类型 DPST-NO
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 51 mA
线圈功率DC 1.80 W
线圈电阻 320 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 24 V
工作温度Max 75 ℃
工作温度Min -45 ℃
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Panel
引脚数 6
封装 -
长度 38.9 mm
宽度 35.7 mm
高度 35.71 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
