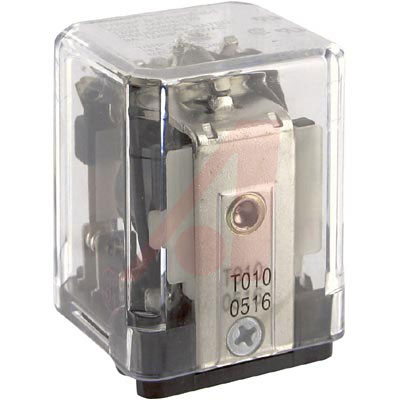

TE CONNECTIVITY / POTTER & BRUMFIELD KUMP-14A18-120 功率继电器, 3PDT, 120VAC, 15A, 插入式
2C DPDT, 15 A , Enclosed Relay
** KUMP Series** relays offer higher current ratings than those available in the KUP series but relay dimensions, wiring diagrams and operating characteristics are the same. Relay types ending with "18" mount in the same sockets as the KUP series relays.
* Contact Current Rating: 15 Amps
* UL File E22575
* CSA File LR15734
e络盟:
继电器, 3PDT, 277VAC, 32VDC, 15A
艾睿:
Electromechanical Relay 120VAC 1.7KOhm 15A 3PDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Allied Electronics:
Relay; 15 A; 120 VDC; 2C DPDT; UL Recognized; CSA Certified; Plain Case
Chip1Stop:
Electromechanical Relay 120VAC 1.7KOhm 15A 3PDT38.89x35.71x55.55mm Plain Case Industrial Relay
Verical:
Electromechanical Relay 120VAC 1.7KOhm 15A 3PDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Power Relay 120VAC 15A 3PDT38.9x35.7x50mm Socket
Online Components:
Power Relay
Electro Sonic:
Power Relay 120VAC 15A 3PDT38.9x35.7x50mm Socket
额定电压DC 120 V
额定电压AC 277 V
额定电流 15 A
额定功率 2.70 W
触点类型 3PDT
功耗 2.70 W
触点额定电流 15 A
线圈电压 120 VAC
线圈电流 24 mA
线圈电压AC 120 V
线圈电阻 1.7 kΩ
载流 15.0 A
额定电流Max 15 A
工作温度Max 45 ℃
工作温度Min -45 ℃
额定电压 277 VAC
安装方式 PCB, Quick Connect
引脚数 11
封装 120
长度 38.89 mm
宽度 35.7 mm
高度 55.55 mm
封装 120
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536490075
