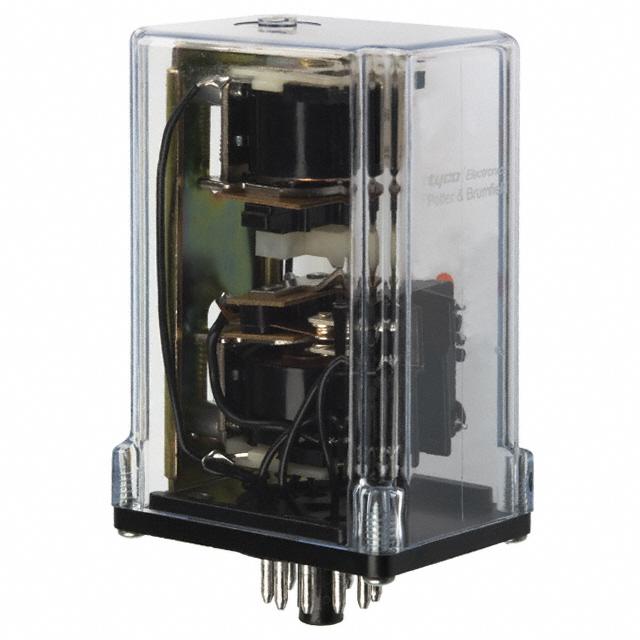

TE CONNECTIVITY / POTTER & BRUMFIELD KBP-11DG-24 功率继电器
通用 继电器 DPDT（2 Form C） 24VDC 线圈 可插
得捷:
RELAY GEN PURPOSE DPDT 10A 24V
Chip1Stop:
Electromechanical Relay DPDT 10A 24VDC 230Ohm Socket
Verical:
Electromechanical Relay 24VDC 230Ohm 10A DPDT 61.11x45.24x90.4mm Socket General Purpose Relay
MASTER:
Power Relay 24VDC 10A DPDT61.1x45.2x90.4mm Panel
Online Components:
Electromechanical Relay 24VDC 230Ohm 10A DPDT61.11x45.24x90.4mm Socket General Purpose Relay
ICbanQ:
General Purpose / Industrial Relays DPDT DUAL COIL 24VDC
Electro Sonic:
Power Relay 24VDC 10A DPDT61.1x45.2x90.4mm Panel
额定电压AC 120 V
输入电压DC 24.0 V
触点类型 DPDT
功耗 2.70 W
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 104 mA
线圈功率DC 2.70 W
线圈电阻 230 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 24 V
线圈功率 2.5 W
工作温度Max 85 ℃
工作温度Min -45 ℃
额定电压AC Max 120 V
安装方式 Plug In
引脚数 11
长度 61.11 mm
宽度 90.4 mm
高度 90.4 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
