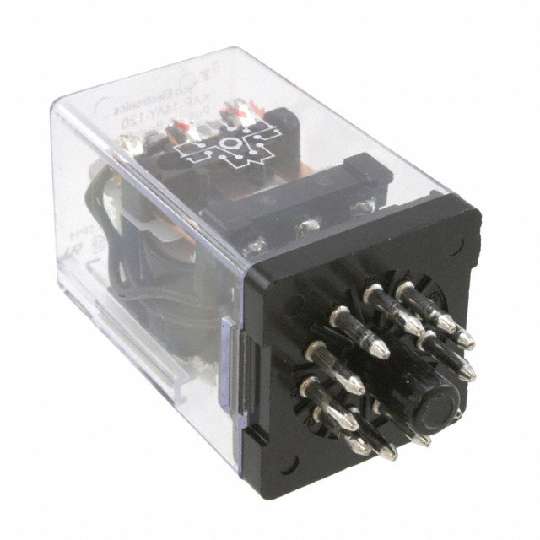

TE CONNECTIVITY / POTTER & BRUMFIELD KAP-14AY-120 功率继电器, 120VAC
Electromechanical Relay 120VAC 2.25KOhm 5A 3PDT35.71x35.71x50.8mm Socket General Purpose Relay
e络盟:
继电器, 3PDT, 120VAC, 5A
安富利:
Electromechanical Relay 3PDT 5A 120VAC 2.25KOhm Socket
Chip1Stop:
Electromechanical Relay 3PDT 5A 120VAC 2.25KOhm Socket
Verical:
Electromechanical Relay 120VAC 2.25KOhm 5A 3PDT 35.71x35.71x50.8mm Socket General Purpose Relay
MASTER:
Electromechanical Relay 120VAC 2.25KOhm 5A 3PDT35.71x35.71x50.8mm Socket General Purpose Relay
Online Components:
Electromechanical Relay 120VAC 2.25KOhm 5A 3PDT35.71x35.71x50.8mm Socket General Purpose Relay
Electro Sonic:
Electromechanical Relay 120VAC 2.25KOhm 5A 3PDT35.71x35.71x50.8mm Socket General Purpose Relay
额定电压DC 28 V
额定电压AC 120 V
触点类型 3PDT
触点额定电流 5 A
线圈电压 120 VAC
线圈电流 17.5 mA
线圈电压AC 120 V
线圈电阻 2.25 kΩ
载流 5.00 A
额定电流Max 5 A
线圈功率 2.1 VA
额定电压DC Max 28 V
额定电压AC Max 120 V
安装方式 Plug In
引脚数 11
长度 48.8 mm
宽度 34.93 mm
高度 37.29 mm
触点材质 Silver
工作温度 -45℃ ~ 70℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
