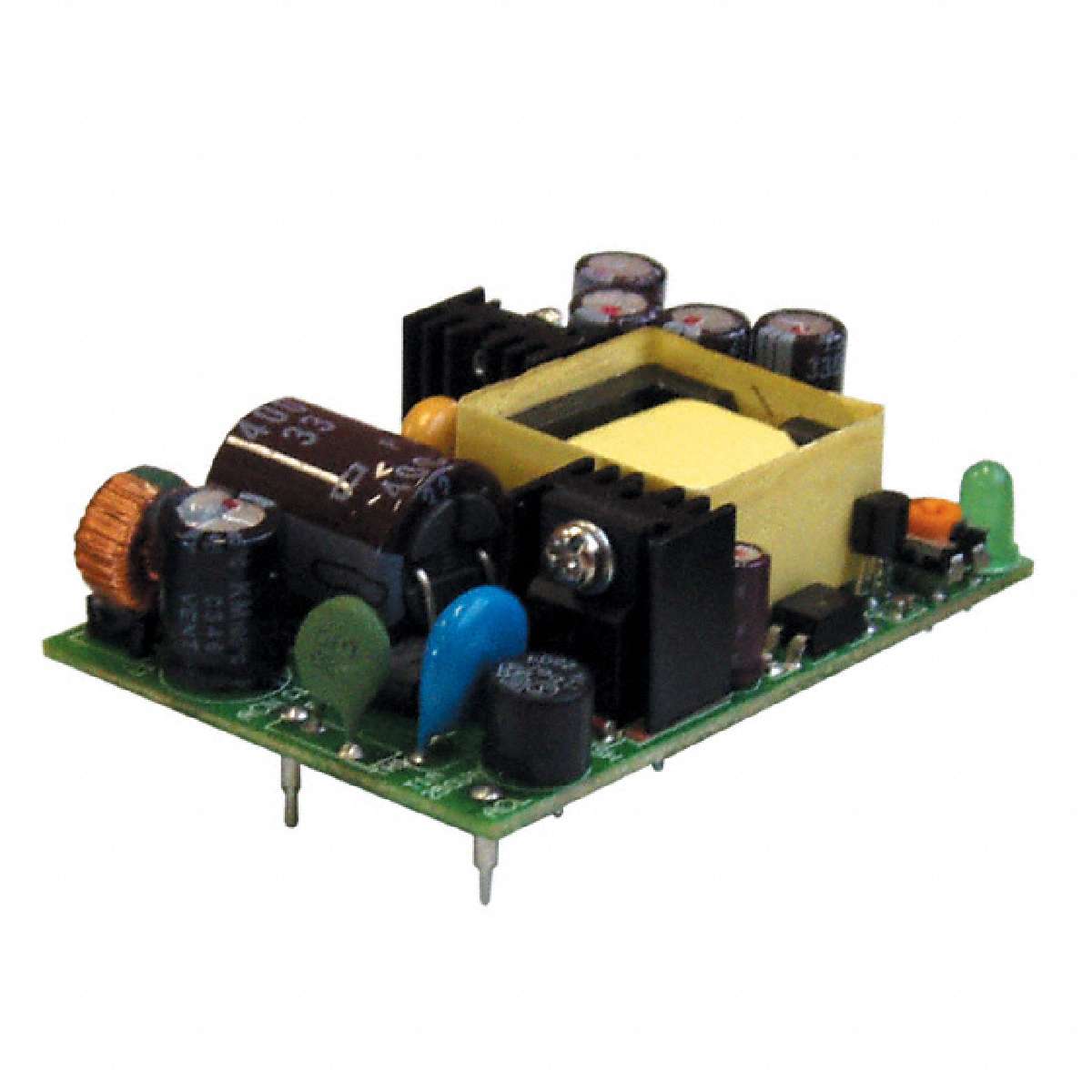

AC-DC Power Supply Single-OUT 5V 2A 10W 5Pin
This AC to DC power supply from -Lambda converts an alternating current source to a direct current supply. It has a voltage of 5 V and maximum output power of 10 W. This part"s single output can handle a current up to 2 A. This part has a temperature range of 0 °C to 70 °C.
得捷:
AC/DC CONVERTER 5V 10W
艾睿:
This KPSA105 AC to DC power supply from TDK-Lambda converts an alternating current source to a direct current supply. It has a voltage of 5 V and maximum output power of 10 W. This part&s;s single output can handle a current up to 2 A. This part has a temperature range of 0 °C to 70 °C.
Verical:
AC/DC Power Supply Single-OUT 5V 2A 10W 5-Pin
额定功率 10 W
输出接口数 1
输出电压 5 V
输出电流 2 A
输出功率 10 W
输入电压DC Max 370 V
输入电压DC Min 110 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 2 A
输入电流Min 0.27 A
输出功率Max 10 W
额定功率Max 10 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
安装方式 Through Hole
引脚数 5
封装 DIP-4
长度 2.4 in
宽度 1.55 in
高度 0.9 in
封装 DIP-4
重量 60.33 g
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KPSA105 TDK 东电化 | 当前型号 | 当前型号 |
KPS105 东电化 | 完全替代 | KPSA105和KPS105的区别 |
KWS10-5 东电化 | 类似代替 | KPSA105和KWS10-5的区别 |
