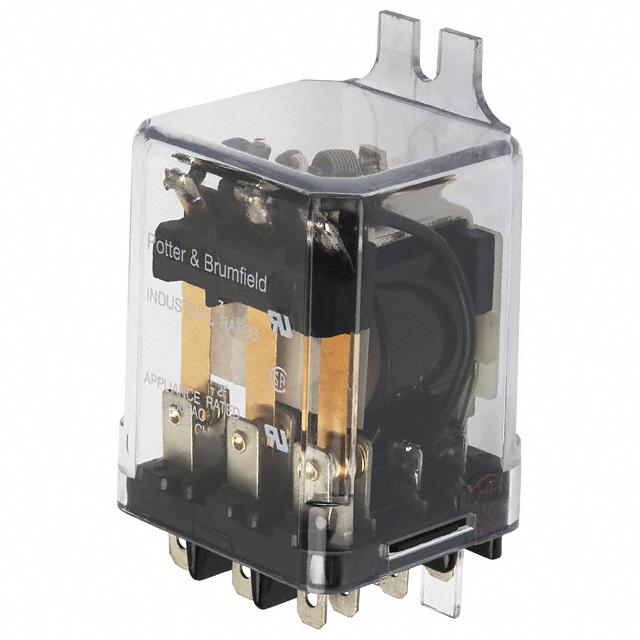

Electromechanical Relay SPST-NO-DM 10A 42VDC Bracket Mount
Electromechanical Relay 42VDC 10A SPST-NO-DM38.89x35.71x55.55mm Bracket Industrial Relay
得捷:
RELAY GEN PURPOSE SPST 10A 42V
贸泽:
General Purpose Relays ENCLOSED RELAY
艾睿:
Power Relay 42VDC 10A SPST-NO-DM38.89x35.71x55.55mm Bracket Industrial Relay
安富利:
Electromechanical Relay SPST-NO-DM 10A 42VDC Bracket Mount
Chip1Stop:
Electromechanical Relay 42VDC 10A SPST-NO-DM 38.89x35.71x55.55mm Bracket Industrial Relay
Verical:
Electromechanical Relay 42VDC 10A SPST-NO-DM 38.89x35.71x55.55mm Bracket Industrial Relay
MASTER:
Electromechanical Relay 42VDC 10A SPST-NO-DM38.89x35.71x55.55mm Bracket Industrial Relay
Online Components:
Electromechanical Relay 42VDC 10A SPST-NO-DM38.89x35.71x55.55mm Bracket Industrial Relay
Electro Sonic:
Electromechanical Relay 42VDC 10A SPST-NO-DM38.89x35.71x55.55mm Bracket Industrial Relay
额定电压DC 32 V
额定电压AC 240 V
触点额定电流 10 A
线圈电压 42 VDC
线圈电流 28.6 mA
线圈电阻 1.47 kΩ
额定电流Max 10 A
线圈电压DC 42 V
线圈功率 1.2 W
额定电压DC Max 32 V
额定电压AC Max 240 V
安装方式 Panel, Bracket
引脚数 4
长度 38.9 mm
宽度 35.7 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536410050
