KSZ8081MNXCA TR

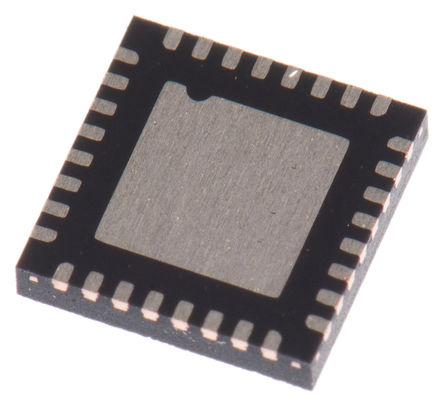

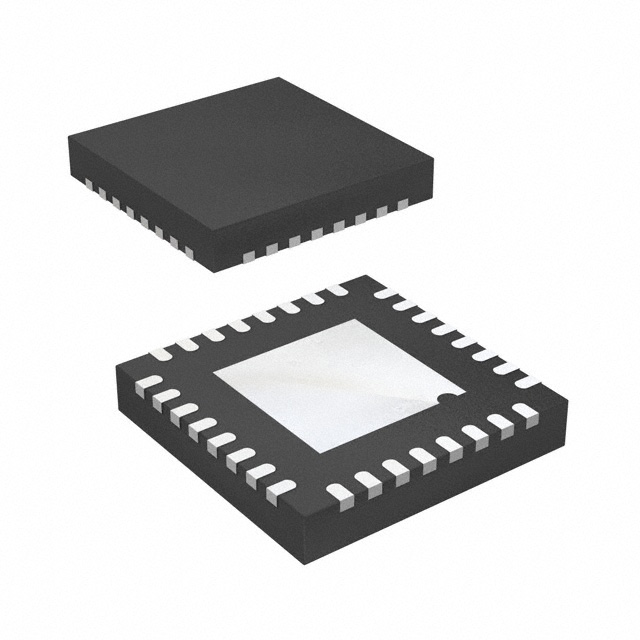

MICREL SEMICONDUCTOR  KSZ8081MNXCA TR  芯片, 收发器, PHY 10/100, 32QFN

The is a Physical Layer Transceiver with a single-supply 10Base-T/100Base-TX Ethernet for transmission and reception of data over standard CAT-5 unshielded twisted pair cable. It is a highly integrated, PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs, by integrating a low-noise regulator to supply the 1.2V core. It offers the media independent interface for direct connection with MII-compliant Ethernet MAC processors and switches. The transceiver provides diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between I/Os and the board.

.

Back-to-back mode support for 100Mbps copper repeater

.

MCD/MDIO management interface for PHY register configuration

.

Programmable interrupt output

.

LED outputs for link, activity and speed status indication

.

On-chip termination resistors for the differential pairs

.

Power-down and power-saving modes
