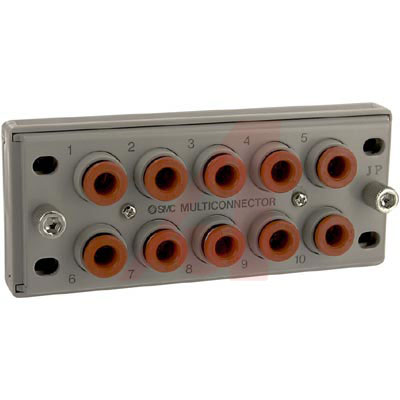

SMC 多路连接器 SMC 的 KDM 系列为矩形多路连接器。 该系列可显著减少安装空间，单触式连接/断开可减少劳动力。 减少大量安装空间 面板可安装 适用于正压和真空 隔板适配器和歧管
Multi-connector is effective in labor savings for separate transportation of the panel and the machine. Excellent for exchanging panels when a failure occurs. In comparison with a panel requiring many bulkhead unions, this model needs only a small mounting area. Multiple tubes can be connected disconnected in a one-touch operation without error. Man-hours for connection/disconnection is reduced substantially. No cumbersome nut and ferrule to contend with.
* Substantial Reduction in Mounting Area
* One-Touch Connection/Disconnection of Multi-Connector Unit
Diameter, Tube 1/4 in.
Fluid Type Air
Material, Body Plastic
Number of Connectors 10
Operating Fluid Air
Pressure, Operating 1 MPa
Product Header Series KDM/DMK/KM Pneumatic Multiconnectors
Proof Pressure 1.5 MPa
Series KDM Series
Size, Tube 1/4 in.
Temperature, Ambient -5 to +60 °C
Type Multi-Connector
RoHS标准 RoHS Compliant
