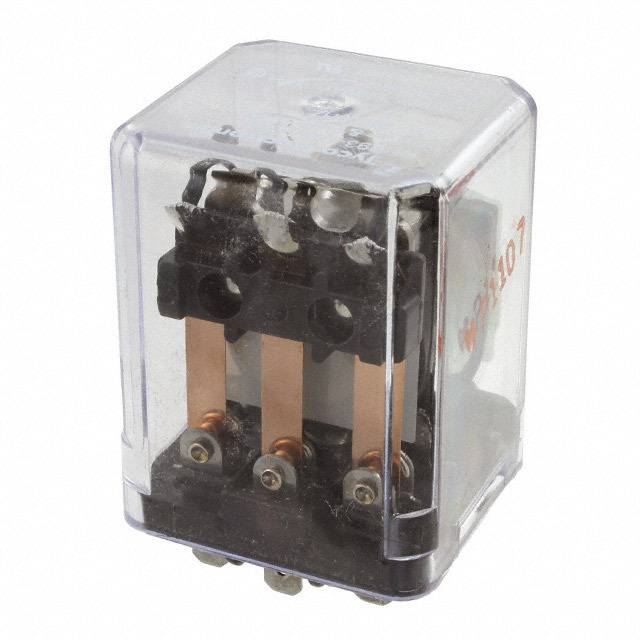

Electromechanical Relay 24VDC 472Ω 10A 3PDT 38.89mm 35.71mm 54.76mm Socket General Purpose Relay
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Product Highlights
KUP93 Series
Contact Arrangement = 3 Form C, 3PDT, 3 C/O
Contact Current Rating = 5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
艾睿:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Chip1Stop:
Electromechanical Relay 3PDT 10A 24VDC 472Ohm Socket
Verical:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT 38.89mm 35.71mm 54.76mm Socket General Purpose Relay
MASTER:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Online Components:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
Electro Sonic:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x54.76mm Socket General Purpose Relay
额定电压DC 28 V
额定电压AC 240 V
输入电压DC 24.0 V
触点类型 3PDT
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 51 mA
线圈功率DC 1200 mW
线圈电阻 472 Ω
额定电流Max 10 A
线圈电压DC 24 V
线圈功率 1.2 W
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 PCB
引脚数 11
长度 38.9 mm
宽度 35.7 mm
高度 54.76 mm
触点材质 Silver Cadmium Oxide
重量 86 g
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
