KTK-R-1

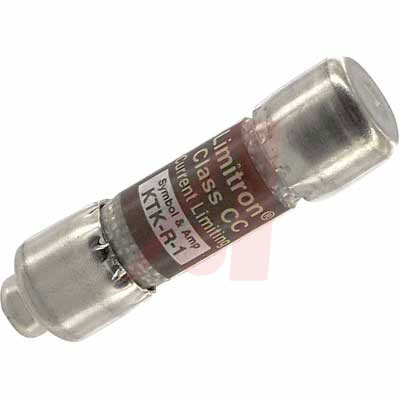

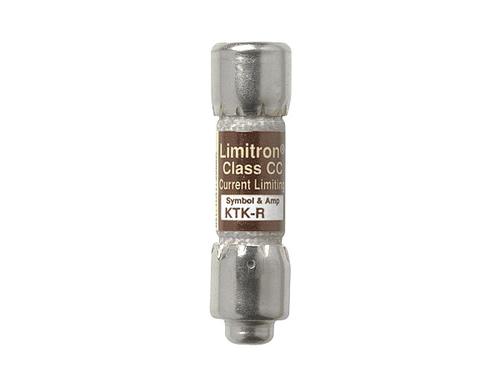

BUSSMANN BY EATON KTK-R-1Industrial / Power Fuse, 600V, 1A, Fast Acting, 10mm x 38mm, 13/32" x 1-1/2"

The is a 1A/600VAC class-CC current-limiting advanced protection Fast Acting Fuse with ceramic tube. This KTK-R-series fuse features built-in rejection failure with appropriate fuse block, prevents inserting lesser-rated supplementary fuses. Current limitation to help prevent equipment damage caused by short-circuit events. A grooved ferrule permits mounting in rejection-type as well as standard fuse holders.

.

Fits both standard and rejection-style holders

.

200kA VAC RMS symmetrical Interrupt rating
