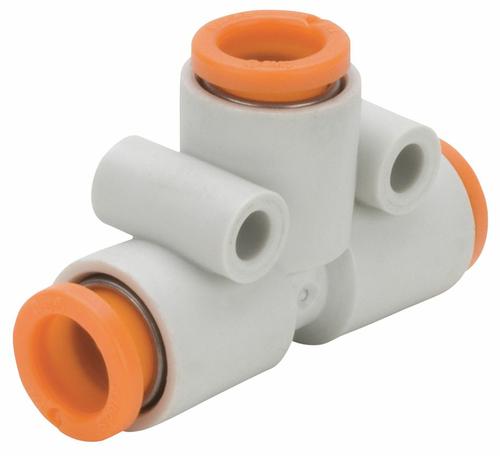

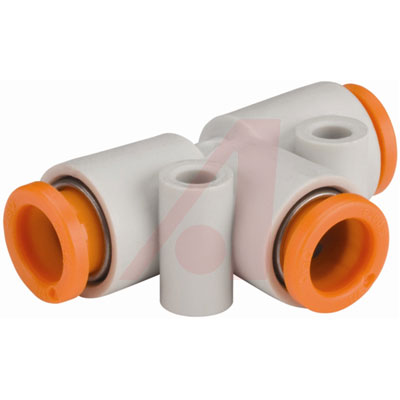

KQ2 Pneumatic Tee Tube-to-Tube Adapter, Push In 3/8in
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
Brand/Series KQ2 Series
Material, Body Plastic
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Product Header KQ2 Series One-Touch Fittings
Proof Pressure 3 MPa
Size, Tube 3/8 "
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Type Tee-Union
RoHS标准 RoHS Compliant
