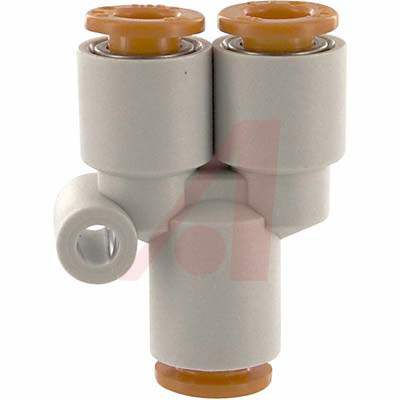

Fitting, Pneumatic; 5/32in.; 34in. Over All; 3in.; 10.4in.; -5℃; PVC
KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
Allied Electronics:
Fitting, Pneumatic; 5/32 in.; 34 in. Over All; 3 in.; 10.40 in.; -5 degC; PVC
重量 7 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Connection 10.40 in.
Diameter, Hole 3 in.
Diameter, Tube 5⁄32 in.
Length 34" Over All
Material, Body Plastic
Material, Gasket PVC
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Tube 5/32 "
Standards RoHs Compliance
Temperature, Ambient, Maximum 60 °C
Temperature, Ambient, Minimum -5 °C
Type Union-Y
Weight 7 g
RoHS标准 RoHS Compliant
