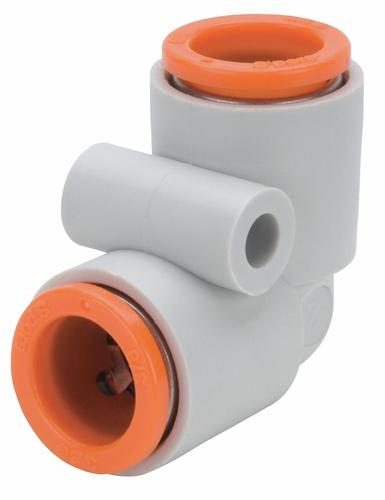

Pneumatic Elbow Tube-to-Tube Adapter Push In 5/32in Push In 5/32in
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
Material, Body Brass, PBT, PP
Material, Gasket PVC
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Product Header KQ2 Series One-Touch Fittings
Proof Pressure 3 MPa
Series KQ2 Series
Size, Tube 5/32 "
Standards RoHs Compliance
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Type Union Elbow
RoHS标准 RoHS Compliant
