Pneumatic Elbow Threaded-to-Tube Adapter, R 1/8 Male, Push In 4mm

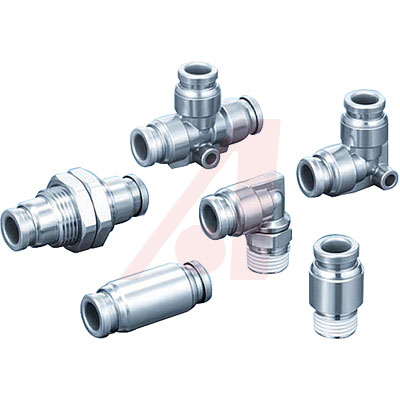

Series KQG2 is a one-touch fitting made of all stainless steel SUS316, except seal parts. The series is suitable for use with steam and is grease-free. Applicable tubing includes FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. The KQG2 series is available in both metric and inch sizes. The KQG2 is more compact and lightweight, and offers more configuration variations and tube sizes than the KQG series.
Allied Electronics:
FITTING, STAINLESS STEEL, MALE ELBOW, FOR 4MM TUBE, 1/8R PORT
Brand/Series KQG2L Series
For Use With Air, Water, Steam
Material, Body Stainless Steel 316
Primary Type Fitting
Size, Port 1/8 R
Size, Tube 4 mm
Standards Food Sanitation Law
Type Male Elbow
Web Features <li>Stainless Steel 316 One-Touch Inch and Metric Sizes UNF, NPT Threads, M, R, Rc Threads <li>Seal Parts: FKM <li>Can be Used with Steam <li>Grease-Free <li>Applicable Tubing Material Includes FEP, PFA, Nylon, Soft Nylon, Polyurethane, Polyolefin
RoHS标准 RoHS Compliant
