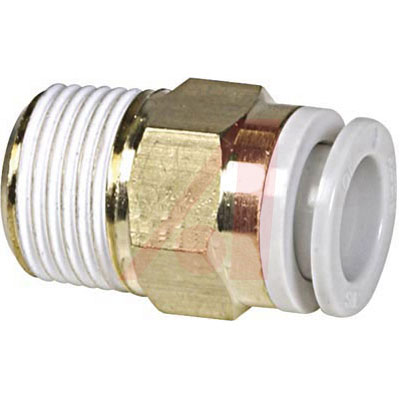

Brand/Series: KQ2 Series Color: White Body, Light Gray Release Button Diameter, Tube: 6mm Length, Overall: 22.5mm M...
Most common style used to pipe from female thread in the same direction.
* Operating Fluid: Air, Water
* Max. Operating Pressure: 145 PSI
* Body: Brass
Allied Electronics:
Fitting; 6 mm; 12 mm; R; 22.5 mm; 1.0 MPa Max.; PBT; PP; brass
重量 16 g
Color Gray | White
Diameter, Tube 6 mm
Length, Overall 22.5 mm
Material, Body Brass
Material, Gasket Stainless Steel
Nut Size 12 mm
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Product Header KQ2 Series One-Touch Fittings
Proof Pressure 3 MPa
Series KQ2 Series
Size, Port 1/8 "
Size, Thread 1⁄8" RcPT
Size, Tube 6 mm
Standards RoHs Compliance, JIS B 0203
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type R
Type Male Connector
Weight 16 g
RoHS标准 RoHS Compliant
