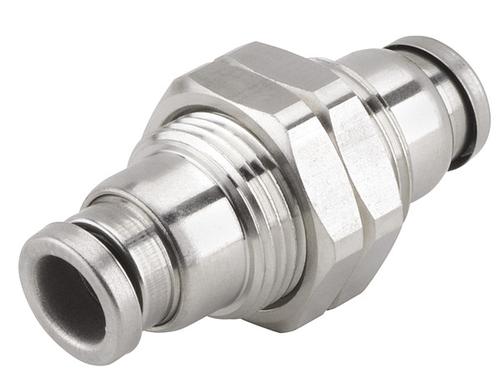

Pneumatic Bulkhead Tube-to-Tube AdapterStraight Push In 3/8in Push In 3/8in

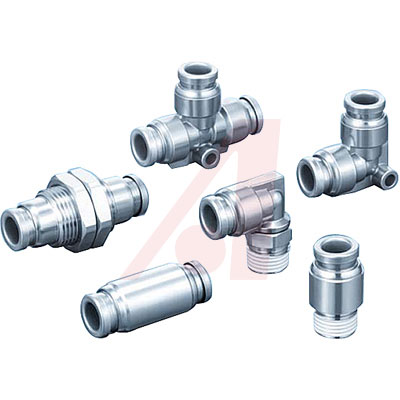

Series KQG2 is a one-touch fitting made of all stainless steel SUS316, except seal parts. The series is suitable for use with steam and is grease-free. Applicable tubing includes FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. The KQG2 series is available in both metric and inch sizes. The KQG2 is more compact and lightweight, and offers more configuration variations and tube sizes than the KQG series.
Allied Electronics:
Pneumatic Bulkhead Tube-to-Tube AdapterStraight Push In 3/8 in Push In 3/8 in
Brand/Series KQG2E Series
For Use With Air, Water, Steam
Material, Body Stainless Steel 316
Primary Type Fitting
Size, Tube 3/8 "
Standards Food Sanitation Law
Type Bulkhead
Web Features <li>Stainless Steel 316 One-Touch Inch and Metric Sizes UNF, NPT Threads, M, R, Rc Threads <li>Seal Parts: FKM <li>Can be Used with Steam <li>Grease-Free <li>Applicable Tubing Material Includes FEP, PFA, Nylon, Soft Nylon, Polyurethane, Polyolefin
RoHS标准 RoHS Compliant
