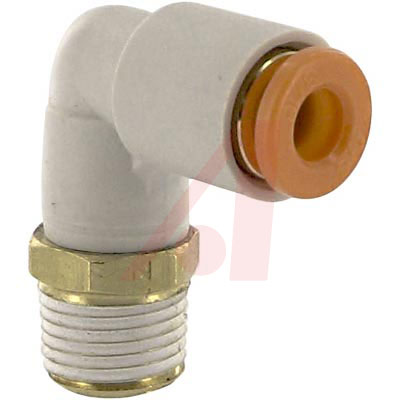

Elbow; 3/16in.; 1/8 NPT; NPT; 11.11mmHex.; 19.5mm; 19.5mm; 22.5mm; PVC

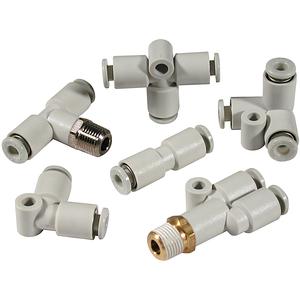

Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
重量 10 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Connection 11.4 mm Max.
Diameter, Hole 3.5 in. Min.
Diameter, Inlet 10 mm Max.
Diameter, Tube 3⁄16 in.
Length, Coupling 22.5 mm
Length, Overall 19.5 mm
Material, Body Plastic
Material, Gasket PVC
Nut Size 11.11 mm Hex.
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Port 1/8 "
Size, Thread 1⁄8 NPT
Size, Tube 3/16 "
Standards RoHs Compliance, JIS B 0208 Mounting and Nut
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Length 19.5 mm
Thread Type NPT
Type Elbow-Male
Weight 10 g
RoHS标准 RoHS Compliant
