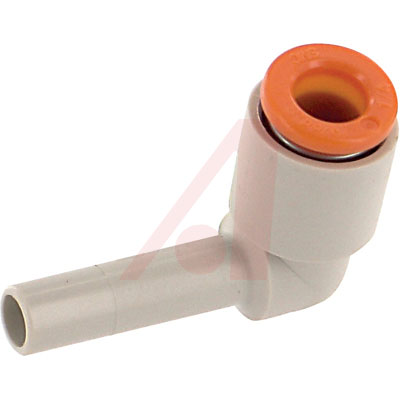

Fitting, One-Touch; 3/8in.; 3/8in.; R, RC; 3/8in.; 13.6mm; 1 Mpa Max.
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
重量 19 g
Brand/Series KQ2 Series
Color Gray | White
Diameter, Connection 3⁄8 in.
Diameter, Hole 13.6 mm
Diameter, Tube 3⁄8 in.
Material, Body Plastic
Material, Gasket Stainless Steel 304, NBR
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Port 3/8 "
Size, Thread 3⁄8 in.
Size, Tube 3/8 "
Standards RoHs Compliance
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type R, RC
Type Elbow-Plug-In
Weight 19 g
RoHS标准 RoHS Compliant
