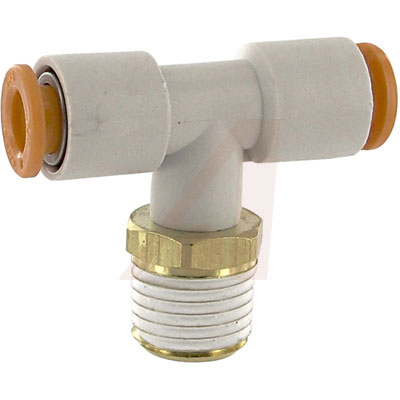

Tee; 5/16in.; NPT 1/4in.; NPT; 14.29mm Hex.; 23mm x 2; 6mm Min.; White
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
颜色 White
重量 23 g
Brand/Series KQ2 Series
Color White
Diameter, Hole 6 mm Min.
Diameter, Inlet 15.2 mm
Diameter, Tube 5⁄16 in.
Length, Overall 23 mm x 2
Material, Body Plastic
Material, Gasket PVC
Nut Size 14.29 mm Hex.
Operating Fluid Air⁄Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 Mpa
Size, Port 1/4 "
Size, Thread NPT 1⁄4 in.
Size, Tube 5/16 "
Standards UL Listed, CSA Certified
Temperature, Ambient, Maximum +60
Temperature, Ambient, Minimum -5 °C
Thread Type NPT
Type Male Branch-Tee
Weight 23 g
RoHS标准 RoHS Compliant
