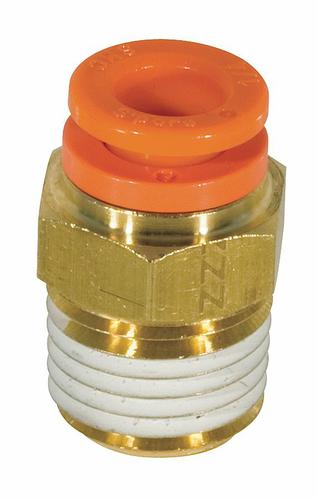

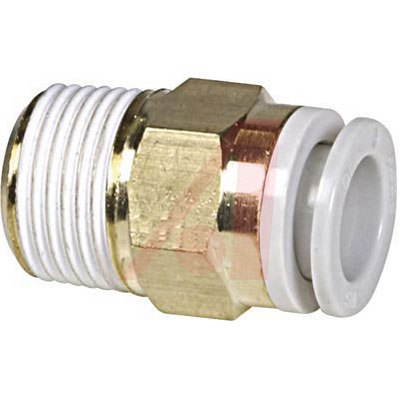

Brand/Series: KQ2 Series Diameter, Tube: 4mm Material, Body: Brass Size, Port: M50.8 Size, Tube: 4mm Type: Male
Most common style used to pipe from female thread in the same direction.
* Operating Fluid: Air, Water
* Max. Operating Pressure: 145 PSI
* Body: Brass
Allied Electronics:
Fitting; Male; Brass Body; Tube 4mm; Port M5x0.8; KQ2 Series
Diameter, Tube 4 mm
Material, Body Brass
Material, Gasket Stainless Steel
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Product Header KQ2 Series One-Touch Fittings
Proof Pressure 3 MPa
Series KQ2 Series
Size, Port M5x0.8
Size, Thread M5 × 0.8
Size, Tube 4 mm
Standards RoHs Compliance, JIS B 0205 Mounting and Nut, ISO 16030
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Type Male Connector
RoHS标准 Non-Compliant
