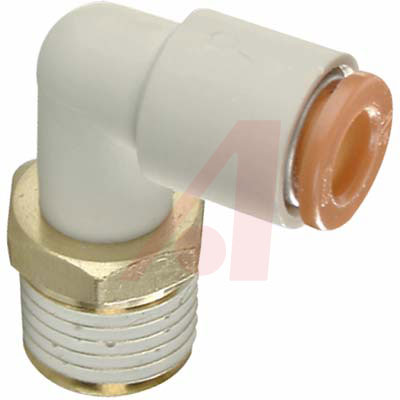

Elbow; 1/8in.; UNF; 7mm Hex.; 15.3mm; 2.5in. Min.; 13.2mm; -5℃; PV
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
重量 2.5 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Hole 2.5 in. Min.
Diameter, Tube 1⁄8 in.
Length, Coupling 13.2 mm
Material, Body Plastic
Material, Gasket PVC
Nut Size 7 mm Hex.
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3.0 MPa
Size, Port 10-32 UNF
Size, Thread 10-32 UNF
Size, Tube 1/8 "
Standards RoHs Compliance, JIS B 0208 Mounting and Nut, ISO 16030
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Length 15.3 mm
Thread Type UNF
Type Elbow-Male
Weight 2.5 g
RoHS标准 RoHS Compliant
