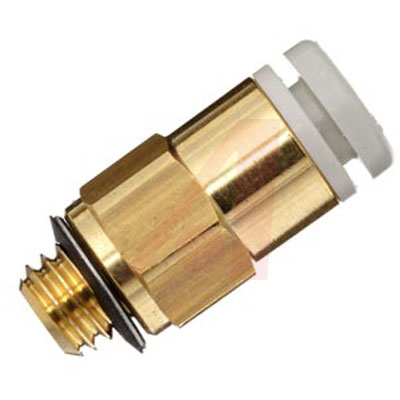

Fitting; 1/4in.; 14.29mm; NPT; 22.5mm; 1.0 MPa Max.; PBT, PP; -5℃; 9g
"s one-touch fittings are designed for smooth insertion, excellent gripping and easy release. A special tube seal and a large tube insertion depth insure a positive seal against the tubing and help eliminate leakage. The fittings accept many types of thermoplastic tubing and are applicable for both vacuum and positive pressure applications. The o-ring and barbed design allows the fitting to rotate into the desired position upon installation. A wide selection of sizes, body styles and thread types are available. Also, available in inch and metric sizes.
* Easy to Install and Adjust to Proper Positioning
* Large Release Button for Easy Removal of Tubing
* Large Tube Insertion Depth Compensates for Unevenly Cut Tubing
* Special Tube Seal Design Provides Positive Sealing without Reduced Flow
* Stainless Steel Chuck for Smooth Insertion and Excellent Gripping SUS304
重量 9 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Tube 1⁄4 "
Length, Overall 22.5 mm
Material, Body Brass
Material, Gasket Stainless Steel
Nut Size 14.29 mm
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Port 1/8 "
Size, Thread 1⁄8" Universal
Size, Tube 1/4 "
Standards RoHs Compliance
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type NPT
Type Male Connector
Weight 9 g
RoHS标准 RoHS Compliant
