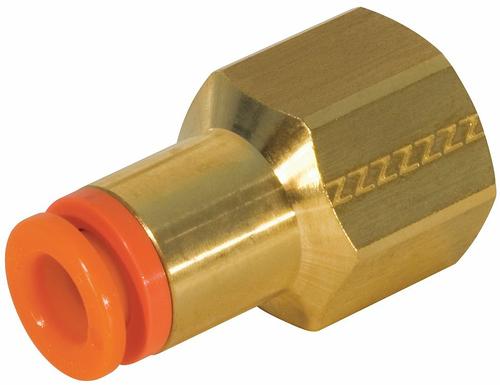

SMC Corporation FITTING, STRAIGHT FEMALE, FOR 1/4IN TUBE, 1/8IN PORT
KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
Allied Electronics:
FITTING, STRAIGHT FEMALE, FOR 1/4 IN TUBE, 1/8 IN PORT
Brand/Series KQ2 Series
Diameter, Tube 1⁄4 "
Material, Body Brass, PBT, PP
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3.0 MPa
Size, Port 1/8 NPT Female
Size, Tube 1/4 "
Standards RoHs Compliance, JIS B 0203
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type NPT
Type Male
