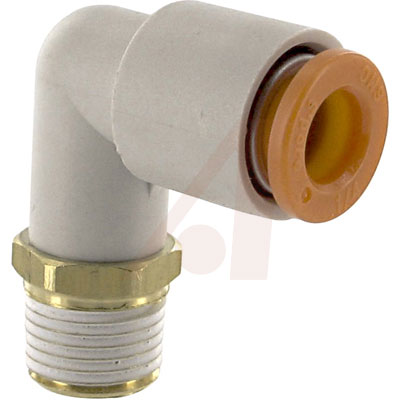

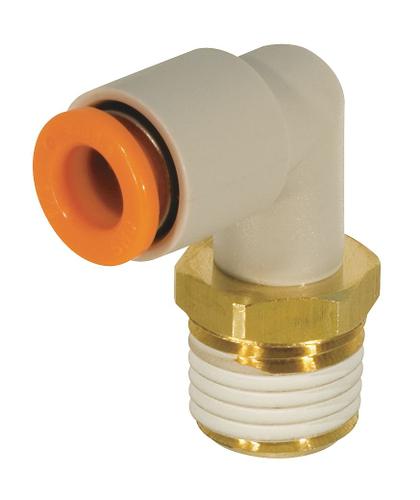

Elbow; 3/8in.; 3/8 NPT; NPT; 17.46mm Hex.; 25.5mm; 25.5mm; 17.9mm Max.
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
重量 33 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Connection 17.9 mm Max.
Diameter, Hole 7 in. Min.
Diameter, Inlet 17 mm Max.
Diameter, Tube 3⁄8 in.
Length, Coupling 31.5 mm
Length, Overall 25.5 mm
Material, Body Plastic
Material, Gasket PVC
Nut Size 17.46 mm Hex.
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Port 3/8 "
Size, Thread 3⁄8" NPT
Size, Tube 3/8 "
Standards RoHs Compliance, JIS B 0208 Mounting and Nut
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Length 25.5 mm
Thread Type NPT
Type Elbow-Male
Weight 33 g
RoHS标准 RoHS Compliant
