Fitting, Pneumatic; 1/8in.; 23in.; 6in.; 15.2in.; 1.0 MPa Max.; -5℃
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
长度 584.2 mm
重量 7 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Connection 15.20 in.
Diameter, Hole 6 in.
Diameter, Tube 1⁄8 in.
Length 23" 584.2mm
Material, Body Plastic
Material, Gasket PVC
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Tube 5/16 " 8 mm
Standards RoHs Compliance
Temperature, Ambient, Maximum 60 °C
Temperature, Ambient, Minimum -5 °C

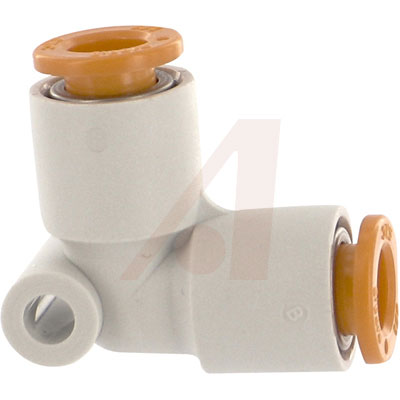

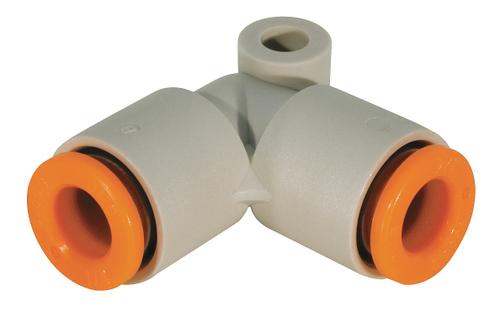

Type Elbow-Union
Weight 7 g
RoHS标准 RoHS Compliant
