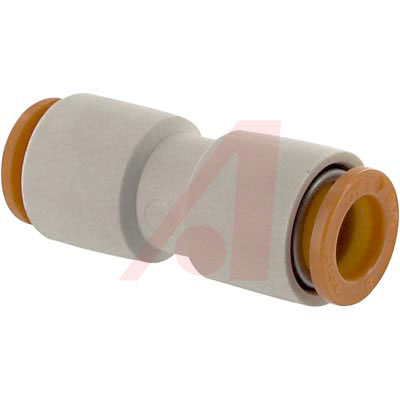

Connector, Pneumatics; 5/16in.; NPT; 22.23mm Hex.; 38.5mm; 6mm Min.
KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing. KQ2 fittings are available to order in multiples of 10.
* Accepts nylon and urethane tubes
* Applicable for both vacuum and positive pressure applications
* Release collar allows easy removal of tubing without damaging the tube
* Maximum vacuum pressure of 1.0MPa
颜色 Orange
重量 6 g
Brand/Series KQ2 Series
Color Orange
Diameter, Hole 6 mm Min.
Diameter, Tube 5⁄16 in.
Length, Overall 38.5 mm
Material, Body Plastic
Material, Gasket PVC
Nut Size 22.23 mm Hex.
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure MPa
Size, Port 5/16 "
Size, Tube 5/16 "
Standards RoHs Compliance
Temperature, Ambient, Maximum 60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type NPT
Type Straight-Union
Weight 6 g
RoHS标准 RoHS Compliant
