KO133E845概述

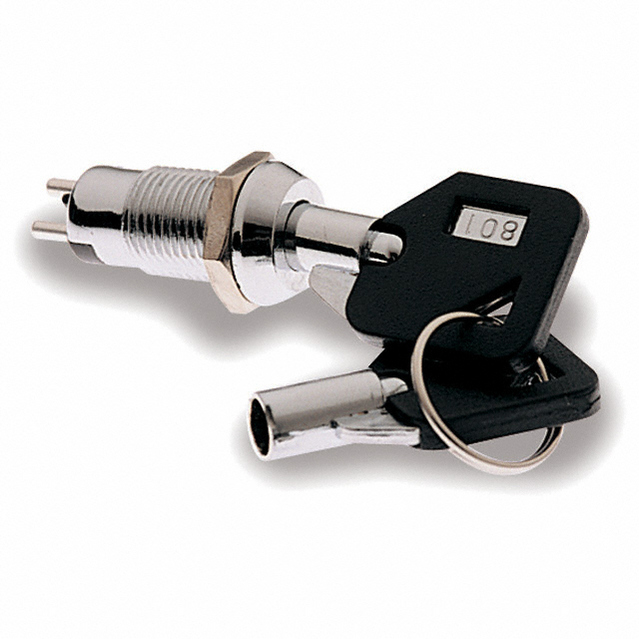

Switch Keylock 2POS Spst 1A 125V
is manufactured by and is categorized in the Keylock Switches category. KO133E845 is described as SWITCH KEYLOCK 2POS SPST 1A 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.
KO133E845中文资料参数规格
封装参数
安装方式 Panel, Solder Lug
其他
Series KO
Current-Rating 1A AC
Termination-Style Solder Lug
Mounting-Type Panel Mount
Features -
Circuit SPST-NO
Voltage-Rating-AC 125V
Voltage-Rating-DC -
Actuator-Type Tubular Key
Contact-Material Copper Alloy
Contact-Finish Silver
Number-of-Positions 2
Panel-Cutout-Dimensions Circular - 12.00mm Dia
Switch-Function Off-Mom
Contact-Timing Not Specified
Key-Removable-Positions 1 only
Angle-of-Throw 90°
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
