SMC KJH04-M5 fitting, male connector, KJ MINI ONE TOUCH sold in packages of 10; price is per piece
* Operating Fluid: Air, Water
* Material: Nickel Plated Brass
* Accepts Nylon and Polyurethane Tubes
* Has Large Retaining Force
* The Use of a Special Profile Ensures Sealing and Reduces Resistance When the Tube Is Inserted
* When the Fitting Is Removed from the Tubing, the Chuck and Collet Are Released, Thus Preventing Them from Biting into the Tube Excessively
* Unique Shape Allows Easy Tube Release
* The Body and Threaded Portion Can Turn Independently
* Standard with Preapplied Thread Sealant
颜色 White
重量 2.4 g
Material, Body Stainless Steel
Pressure, Operating 1.0 MPa Max.

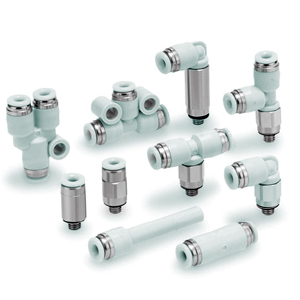

Product Header Miniature One-Touch Fittings
Series KJ Series
Size, Port M5x0.8
Size, Tube 4 mm
Standards UL Listed, CSA Certified
Temperature, Ambient, Maximum 60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type M3
Type Male
Weight 2.4 g
RoHS标准 RoHS Compliant
