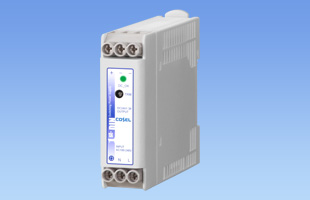

30W Watt, Single Output, 5V@5A DIN Rail Mount Power Metal AC-DC Power Supply
* Features
Efficiency increased with synchronous rectification technology and resonant circuit
Over current protection, Over voltage protection
Wide operating ambient temperature range:-20 to +70°C
NEC Class2 30F and 60F only
* Safety agency approvals
* UL60950-1, C-UL, EN60950-1, EN50178, UL508, ANSI / ISA12.12.01
* UL508NEC Class230F and 60F only
* GLGermanischer Lloyd120F and 240F only
* Complies with DEN-AN
* CE marking
* Low Voltage Directive
* Environment
* RoHS directive
* EMI
* Complies with FCC-B, CISPR-B, EN55011-B, EN55022-B, VCCI-B
* EMS Compliance:EN61204-3, EN61000-6-2
* EN61000-4-2
* EN61000-4-3
* EN61000-4-4
* EN61000-4-5
* EN61000-4-6
* EN61000-4-8
* EN61000-4-11
* 5-year warranty with conditions
额定功率 30 W
输出接口数 1
输出电压 5 V
输出电流 5 A
输出功率 25 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 5 A
输入电流Min 0.45 A
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 85VAC ~ 264VAC
长度 0.89 in
宽度 2.95 in
高度 3.54 in
工作温度 -20℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
