KSR2101MTF

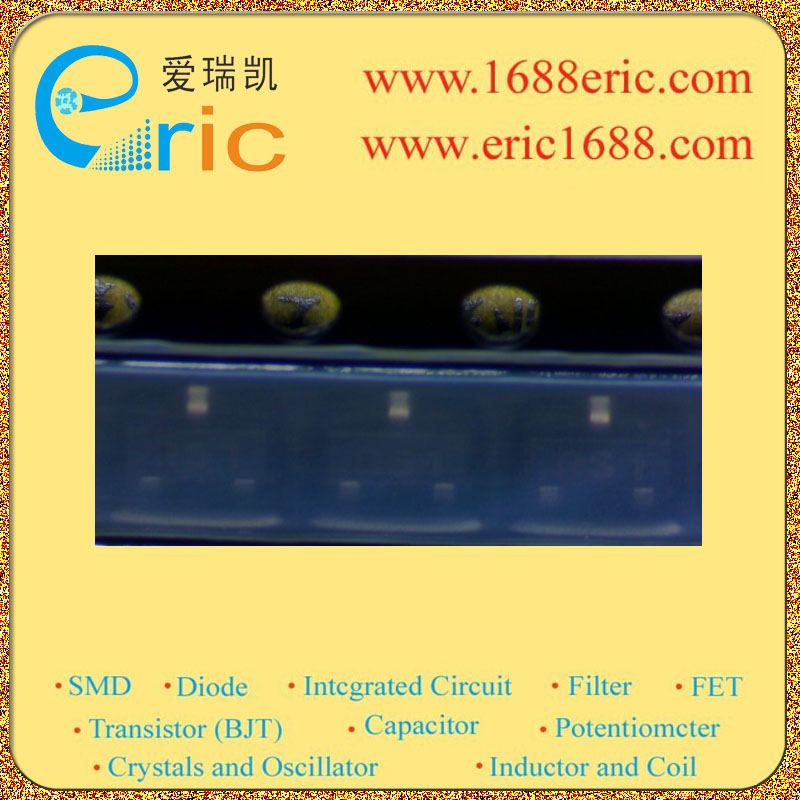

KSR2101MTF 带阻尼PNP三极管 -50V -100mA/-0.1A 20 0.2W/200mW SOT-23/SC-59 标记R51 开关电路，逆变器，接口电路，驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V 集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A 基极输入电阻R1 Input ResistanceR1| 4.7KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 4.7KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 20 截止频率fT Transtion FrequencyfT| 250MHz 耗散功率Pc Power Dissipation| 0.2W/200mW Description & Applications| FEATURES • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor R1=4.7KΩ, R2=4.7KΩ • Complement to KSR1101 描述与应用| 特点 •开关电路，逆变器，接口电路，驱动器电路 •内置偏置电阻（R1=4.7KΩ，R2=4.7KΩ） •KSR1101补
