KMS233GLFG

KMS 系列 微型 单刀单掷 3 N 0.01 A 表面贴装 轻触开关

Microminiature SMT Side Actuated

艾睿:

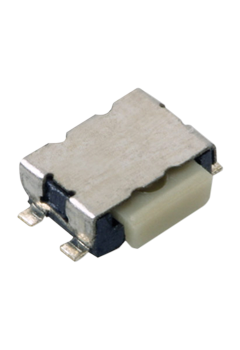

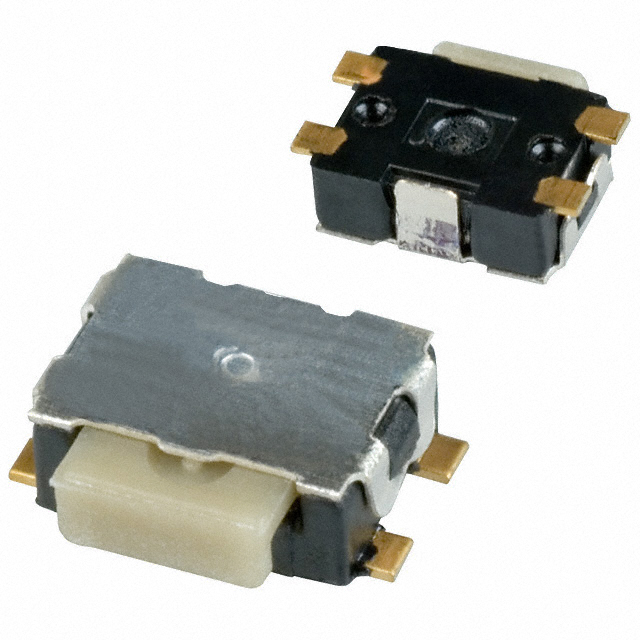

This micro-miniature KMS233GLFG tactile switch from C&a;K Components is perfect for turning on your circuit by applying pressure. It has a SPST configuration. This device has a maximum current rating of 0.01. This tactile switch has a minimum operating temperature of -40 °C and a maximum of 125 °C. The KMS233GLFG tactile switch has a gull wing termination style. The maximum DC voltage rating is 32 VDC. This rectangular button actuator is 0.75 mm long. This product is 4.6 mm long, 1.42 mm tall and 3.55 mm deep.

安富利:
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.01A 32VDC 0.2VA 100000Cycle 3N SMD T/R

Chip1Stop:
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.01A 32VDC 0.2VA 100000Cycles 3N SMD T/R

Verical:
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.01A 32VDC 0.2VA 100000Cycles 3N SMD T/R

Newark:
# C & K COMPONENTS  KMS233GLFG  Tact

MASTER:
Microminiature SMT Side Actuated

Online Components:
Microminiature SMT Side Actuated

Electro Sonic:
Microminiature SMT Side Actuated

Win Source:
SWITCH TACTILE SPST-NO 0.01A 50V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
