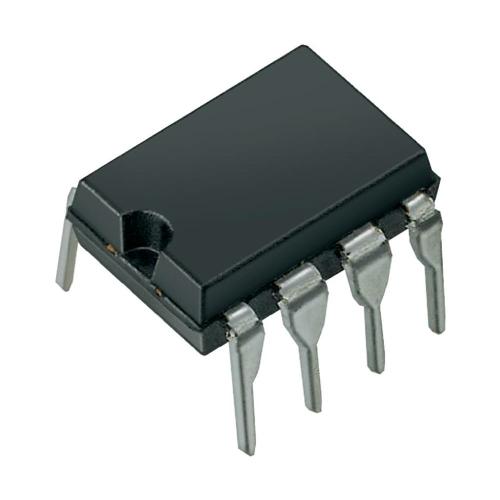

KIA358P

BIPOLAR LINEAR INTEGRATED CIRCUIT DUAL OPERATIONAL AMPLIFIER

• In the Linear Mode the Input Common Mode Voltage Range Includes Ground.

• Two Internally Compensated OP Amps are in Single Package.

• Low Power Dissipation and Power Drain Suitable for Battery Operation.

• Differential Input Voltage Range Equal to the Power Supply Voltage.

• Wide Power Supply Voltage Range and Signal Power Supply

: Single Supply 3VDCto 36V

• DC  Dual Supplies  1.5VDC to  18VDC

• Large Output Voltage Swing : 0VDC to VCC-1.5VDC

• Low Input Biasing Current : II=45nADC Typ.

• Possible to Exchange the Position of Pin-9 for Pin-1 Because of Pin Connection Being Symmetric.KIA358S only

• The Pin-1 and Pin-9 of Lead Frame was Each Other Connected. KIA358S Only
