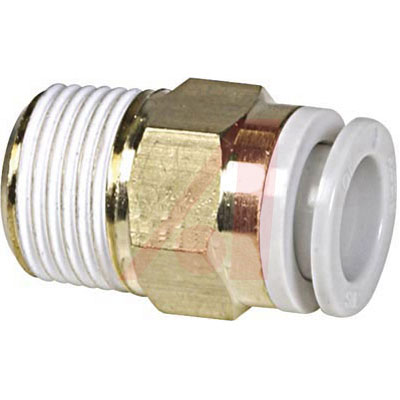

Brand/Series: KQ2 Series Color: White Body, Light Gray Release Button Diameter, Tube: 12mm Length, Overall: 23.5mm ...
Most common style used to pipe from female thread in the same direction.
* Operating Fluid: Air, Water
* Max. Operating Pressure: 145 PSI
* Body: Brass
Allied Electronics:
Fitting; 12 mm; 14 mm; R; 23.5 mm; 1.0 MPa Max.; PBT, PP; brass
重量 34 g
Brand/Series KQ2 Series
Color Gray | White
Diameter, Tube 12 mm
Length, Overall 23.5 mm
Material, Body Brass
Material, Gasket Stainless Steel
Nut Size 14 mm
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Thread 3⁄8" RcPT
Size, Tube 12 mm
Standards RoHs Compliance, JIS B 0203
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type R
Type Male Connector
Weight 34 g
RoHS标准 RoHS Compliant
含铅标准 Lead Free
