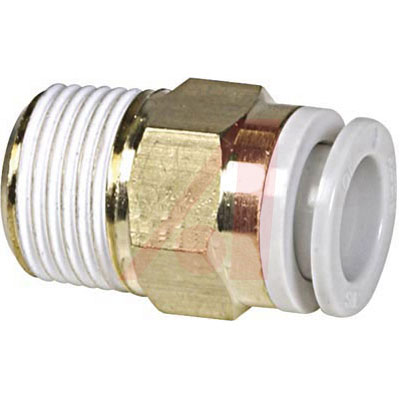

Brand/Series: KQ2 Series Color: White Body, Light Gray Release Button Diameter, Tube: 12mm Length, Overall: 34.5mm ...
Most common style used to pipe from female thread in the same direction.
* Operating Fluid: Air, Water
* Max. Operating Pressure: 145 PSI
* Body: Brass
Allied Electronics:
Fitting; 12 mm; 19 mm; R; 34.5 mm; 1.0 MPa Max.; PBT, PP; brass
重量 42 g
Brand/Series KQ2 Series
Color Gray | White
Diameter, Tube 12 mm
Length, Overall 34.5 mm
Material, Body Brass
Material, Gasket Stainless Steel
Nut Size 19 mm
Operating Fluid Air⁄Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Port 1/4 "
Size, Tube 12 mm
Standards RoHs Compliance, JIS B 0203
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type R
Type Male Connector
Weight 42 g
RoHS标准 RoHS Compliant
含铅标准 Lead Free
