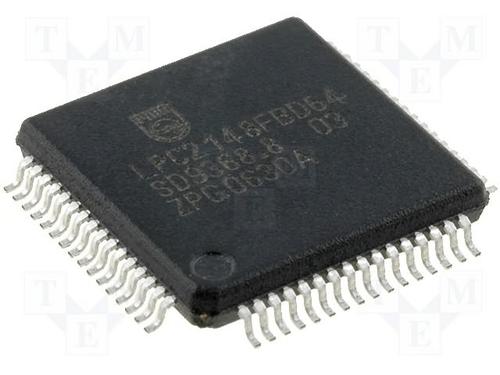

NXP LPC2148FBD64 微控制器MCU, 16/32位, ARM7, 512K闪存, 64LQFP
The is a single-chip 32-bit Microcontroller Unit EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip real monitor software and high-speed tracing of instruction execution. This microcontroller is based on a 32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with embedded high-speed flash memory ranging from 32 to 512kB. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit thumb mode reduces code by more than 30% with minimal performance penalty.
电源电压DC 3.00V min
工作电压 3V ~ 3.6V

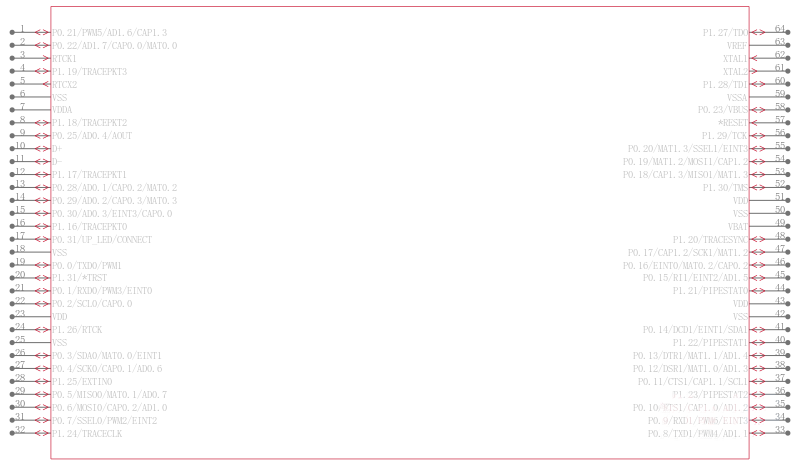

针脚数 64
时钟频率 60 MHz
RAM大小 40 KB
位数 32
FLASH内存容量 512 KB
内存容量 512000 B
模数转换数ADC 2
输入/输出数 45 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1500 mW
数模转换数DAC 1
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 64

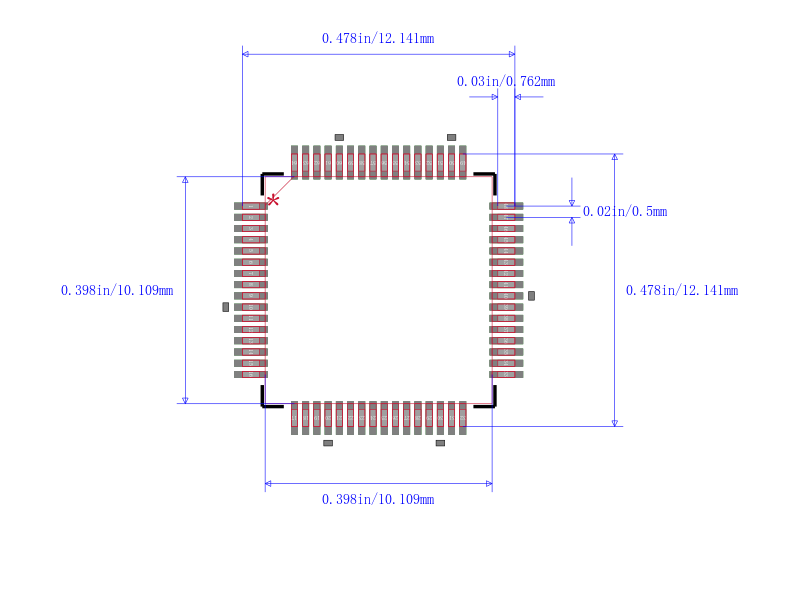

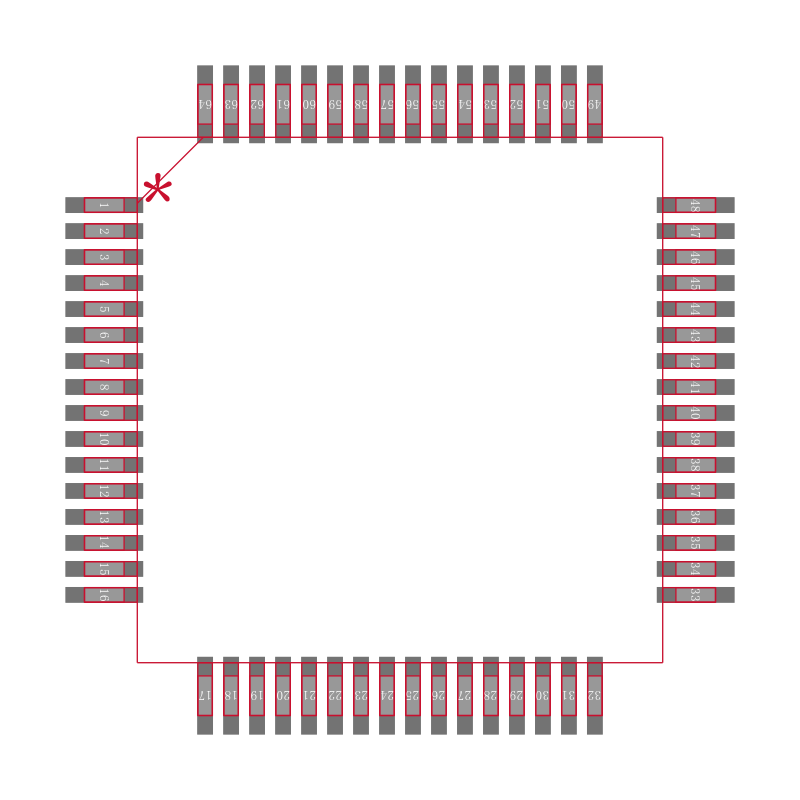

封装 LQFP-64
封装 LQFP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 通信与网络, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LPC2148FBD64 NXP 恩智浦 | 当前型号 | 当前型号 |
LPC2148FBD64,151 恩智浦 | 类似代替 | LPC2148FBD64和LPC2148FBD64,151的区别 |
LPC2144FBD64 恩智浦 | 功能相似 | LPC2148FBD64和LPC2144FBD64的区别 |
