LMZ12001TZ-ADJ/NOPB

TEXAS INSTRUMENTS  LMZ12001TZ-ADJ/NOPB  芯片, 直流/直流转换器, 降压, 1MHZ, TO-PMOD-7

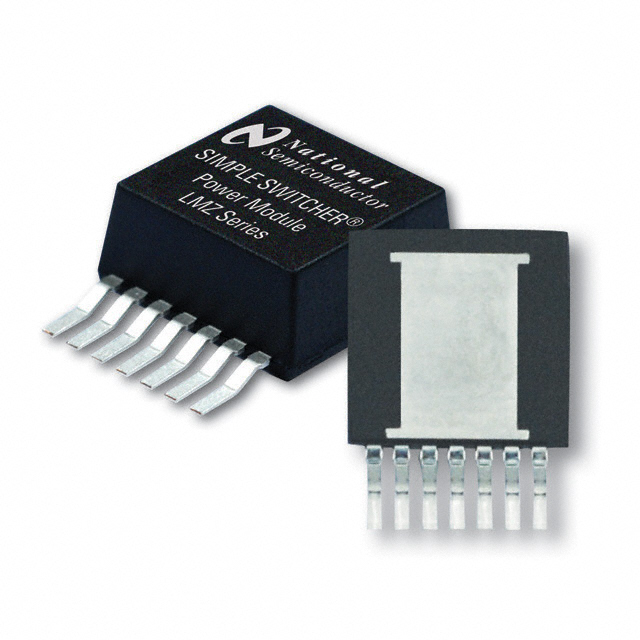

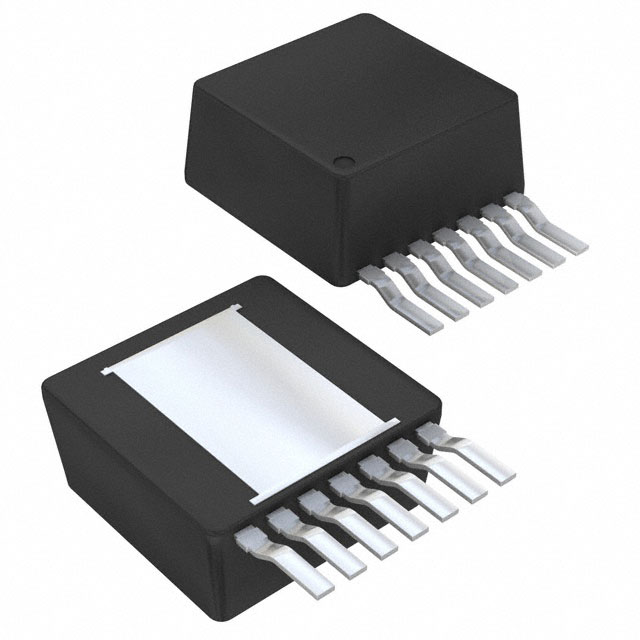

The is a SIMPLE SWITCHER® Power Module with 20V maximum input voltage. The power module is an easy-to-use step-down DC-DC solution capable of driving up to 1A load with exceptional power conversion efficiency, line and load regulation and output accuracy. The LMZ12001 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12001 can accept an input voltage rail between 4.5 and 20V and can deliver an adjustable and highly accurate output voltage as low as 0.8V. The LMZ12001 only requires three external resistors and four external capacitors to complete the power solution. The LMZ12001 is a reliable and robust design with the following protection features thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit and the device allows start-up into a pre-biased output. A single resistor adjusts the switching frequency up to 1MHz.

.

Integrated shielded inductor

.

Simple PCB layout

.

Flexible start-up sequencing using external soft-start capacitor and precision enable

.

Protection against inrush currents and faults such as input UVLO and output short circuit

.

Single exposed pad and standard pinout for easy mounting and manufacturing

.

Fast transient response for FPGAs and ASICs

.

Low output voltage ripple

.

Fully WEBENCH® Power designer enabled

.

Operates at high ambient temperature with no thermal derating

.

High efficiency reduces system heat generation

.

Low external component count

.

6W Total power output

.

92% Efficiency

.

Low radiated emissions EMI tested to EN55022 class B standard

.

Green product and no Sb/Br
